MEA1608LD150TA0G - TDK

Description: 3-terminal Filters, Cut-Off frequency=380MHz, L x W x T :

Download MEA1608LD150TA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

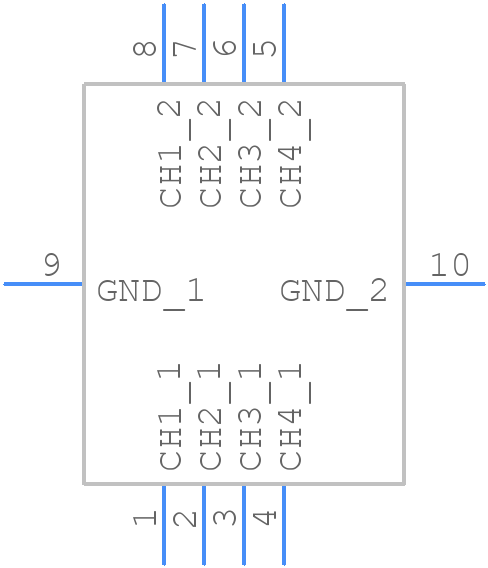

MEA1608LD150TA0G - TDK - PCB symbol
click to zoom
PCB Footprints
MEA1608LD150TA0G - TDK PCB footprint - Other - Other - MEA1608
click to zoom
3D Models
MEA1608LD150TA0G - TDK - 3D model - Other - MEA1608
click to zoom

MEA1608LD150TA0G Details

  • Manufacturer Part Number:

    MEA1608LD150TA0G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.39

  • Capacitance:

    15 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 Inch

  • Rated Current:

    0.05 A

  • Rated Voltage:

    6.3 V

  • Width:

    0.8 mm

MEA1608LD150TA0G Frequently Asked Questions (FAQs)

  • The recommended land pattern for MEA1608LD150TA0G is available in the TDK Corporation's 'Chip Inductors for General Use' application note (PDF). It provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
  • The MEA1608LD150TA0G is classified as a Moisture Sensitivity Level (MSL) 2 device. It's recommended to follow the IPC/JEDEC J-STD-033 standard for handling and storage to prevent moisture-related damage.
  • Although the datasheet doesn't specify a maximum voltage, it's generally recommended not to exceed 1.5 times the rated voltage (1.5 x 15V = 22.5V) to ensure reliable operation and prevent damage.
  • While the MEA1608LD150TA0G is suitable for high-frequency applications, its performance may degrade above 100 MHz due to self-resonance. It's essential to evaluate the inductor's behavior in your specific application and consider using a different component if necessary.
  • The ESR of the MEA1608LD150TA0G can be calculated using the impedance vs. frequency graph provided in the datasheet. You can also use the following formula: ESR = (Impedance at 100 kHz) / (2 x π x Frequency x Inductance).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MEA1608LD150TA0G Overview

Use the download button to access the MEA1608LD150TA0G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA16, or try a keyword search, such as Data Line Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
