MEA1608PE220TA0G - TDK

Description: 3-terminal Filters, Cut-Off frequency=250MHz, L x W x T :

Download MEA1608PE220TA0G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

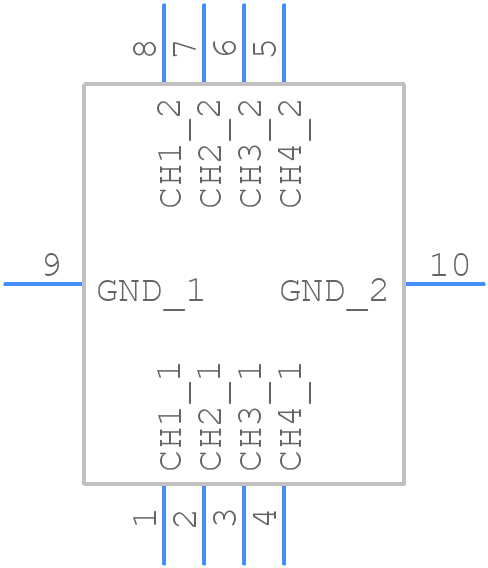

MEA1608PE220TA0G - TDK - PCB symbol
click to zoom
PCB Footprints
MEA1608PE220TA0G - TDK PCB footprint - Other - Other - MEA1608
click to zoom
3D Models
MEA1608PE220TA0G - TDK - 3D model - Other - MEA1608
click to zoom

MEA1608PE220TA0G Details

  • Manufacturer Part Number:

    MEA1608PE220TA0G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.39

  • Capacitance:

    22 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.5 mm

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Rated Current:

    0.1 A

  • Rated Voltage:

    6.3 V

  • Width:

    0.8 mm

MEA1608PE220TA0G Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MEA1608PE220TA0G can be found in the TDK Corporation's application note or footprint recommendation document, which provides detailed information on the recommended pad layout and dimensions for optimal assembly and reliability.
  • The MEA1608PE220TA0G is a moisture-sensitive device and should be handled according to the IPC/JEDEC J-STD-033 standard. This includes storing the components in a dry environment, using a dry pack or desiccant, and following proper baking procedures before assembly.
  • The maximum allowable voltage derating for the MEA1608PE220TA0G depends on the specific application and operating conditions. As a general guideline, TDK Corporation recommends derating the voltage by 10-20% to ensure reliable operation and to account for any potential voltage spikes or transients.
  • Yes, the MEA1608PE220TA0G is suitable for high-frequency applications up to several hundred MHz. However, it's essential to consider the component's self-resonant frequency, parasitic inductance, and capacitance when designing the circuit to ensure optimal performance and minimize signal degradation.
  • The ESR of the MEA1608PE220TA0G can be determined by measuring the impedance of the component using an impedance analyzer or a vector network analyzer. The ESR is typically specified in the datasheet, but it may vary depending on the frequency and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MEA1608PE220TA0G Overview

Use the download button to access the MEA1608PE220TA0G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA16, or try a keyword search, such as Data Line Filters
