MEA2010L101RT001 - TDK

Description: 3-terminal Filters, Cut-Off frequency=100MHz, L x W x T :

Download MEA2010L101RT001 Model

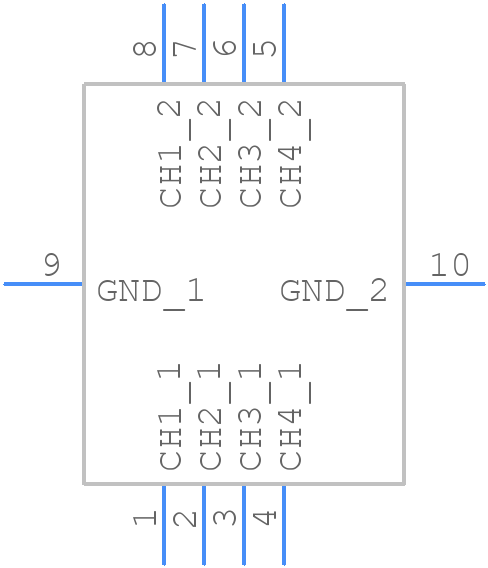

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MEA2010L101RT001 - TDK PCB footprint - Other - Other - MEA2010
click to zoom
3D Models
MEA2010L101RT001 - TDK  - 3D model - Other - MEA2010
click to zoom

MEA2010L101RT001 Details

  • Manufacturer Part Number:

    MEA2010L101RT001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 10 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Additional Feature:

    L-TYPE CIRCUIT

  • Attenuation Frequency-Max:

    800 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Filter Type:

    FERRITE CHIP

  • Height:

    0.7 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.1 A

  • Rated Voltage:

    10 V

  • Width:

    1 mm

MEA2010L101RT001 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MEA2010L101RT001 is a rectangular pad with a size of 1.2mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal stress.
  • Yes, the MEA2010L101RT001 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the self-resonant frequency (SRF) of the inductor, which is around 2.5 GHz, and ensure that the operating frequency is below the SRF to avoid unwanted resonance.
  • The MEA2010L101RT001 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider the thermal resistance (Rth) of the inductor, which is around 20°C/W. Ensure that the PCB design and layout provide adequate thermal dissipation, and consider using thermal vias or heat sinks if necessary.
  • Yes, the MEA2010L101RT001 is compatible with lead-free soldering. TDK Corporation ensures that their components meet the requirements of the RoHS directive, and the MEA2010L101RT001 can be soldered using lead-free soldering processes.
