The recommended land pattern for the MEA2010L50R0T001 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To prevent damage, it is recommended to handle the MEA2010L50R0T001 by the edges, avoiding touching the pads or the component body. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
The maximum allowable voltage derating for the MEA2010L50R0T001 is typically 80% of the rated voltage. However, it is recommended to consult with TDK Corporation's application engineers or refer to the device's reliability report for specific derating guidelines.
The MEA2010L50R0T001 is rated for operation up to 125°C. However, it is essential to consider the device's power derating, thermal management, and potential degradation of electrical characteristics at high temperatures. Consult with TDK Corporation's application engineers or refer to the device's reliability report for specific guidance.
To prevent moisture absorption, store the MEA2010L50R0T001 in a dry, cool place, away from direct sunlight. Use airtight packaging or desiccant packets to maintain a low humidity environment. Follow the IPC/JEDEC J-STD-033 standard for moisture-sensitive device handling and storage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA2010L50R0T001 Overview

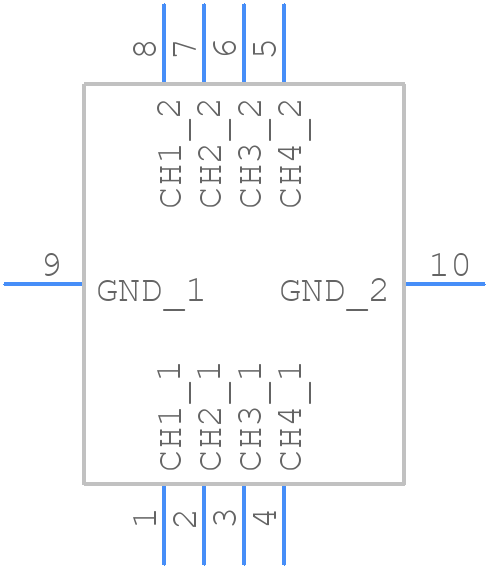

Use the download button to access the MEA2010L50R0T001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA20,
or try a keyword search, such as Data Line Filters
