MEA2010L75R0T001 - TDK

Description: 3-terminal Filters, Cut-Off frequency=75MHz, L x W x T :

Download MEA2010L75R0T001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

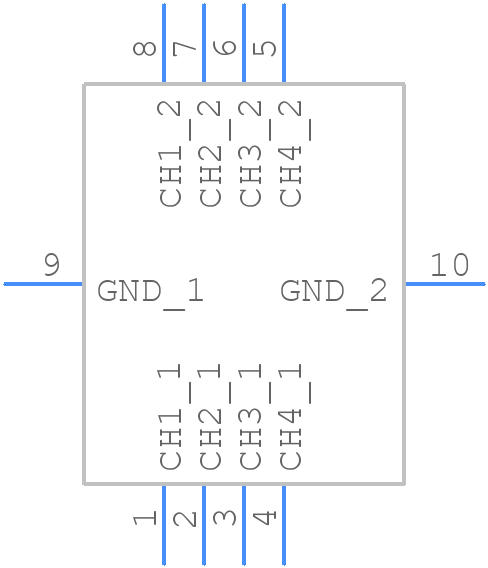

Symbol
MEA2010L75R0T001 - TDK - PCB symbol
click to zoom
PCB Footprints
MEA2010L75R0T001 - TDK PCB footprint - Other - Other - MEA2010
click to zoom
3D Models
MEA2010L75R0T001 - TDK - 3D model - Other - MEA2010
click to zoom

MEA2010L75R0T001 Details

  • Manufacturer Part Number:

    MEA2010L75R0T001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 10 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Additional Feature:

    L-TYPE FILTER

  • Attenuation Frequency-Max:

    600 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Filter Type:

    FERRITE CHIP

  • Height:

    0.7 mm

  • Insulation Resistance-Min:

    10 MΩ

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    0.1 A

  • Rated Voltage:

    10 V

  • Width:

    1 mm

MEA2010L75R0T001 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MEA2010L75R0T001 is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm gap between pads. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal issues.
  • Yes, the MEA2010L75R0T001 is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonance frequency, which is around 500 MHz, and take necessary precautions to avoid resonance issues.
  • To ensure proper thermal management, it's recommended to provide a thermal pad or a heat sink under the component, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK. Additionally, ensure good airflow around the component and avoid blocking the airflow with other components or obstacles.
  • Yes, the MEA2010L75R0T001 is compatible with lead-free soldering. TDK Corporation recommends using a soldering temperature profile with a peak temperature of 260°C to 270°C, and a soldering time of 3-5 seconds.
  • The recommended storage condition for MEA2010L75R0T001 is in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. Avoid storing the components in direct sunlight or near heat sources.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MEA2010L75R0T001 Overview

Use the download button to access the MEA2010L75R0T001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA20, or try a keyword search, such as Data Line Filters

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
