The recommended land pattern for MEA2010LC100T002 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.15mm.
To prevent damage, handle the MEA2010LC100T002 by the edges or the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending, flexing, or applying excessive force to the component.
The maximum reflow temperature for MEA2010LC100T002 is 260°C, with a peak temperature not exceeding 240°C for more than 20 seconds. It's essential to follow the recommended reflow profile to prevent damage to the component.
While the MEA2010LC100T002 is designed to be robust, it's essential to consider the vibration environment and ensure the component is properly secured to the PCB. TDK recommends following the recommended mounting and soldering guidelines to minimize the risk of component failure due to vibration.
Store the MEA2010LC100T002 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. The recommended storage conditions are -10°C to 30°C and 20% to 80% relative humidity. Avoid exposing the component to chemicals, cleaning solvents, or other contaminants.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA2010LC100T002 Overview

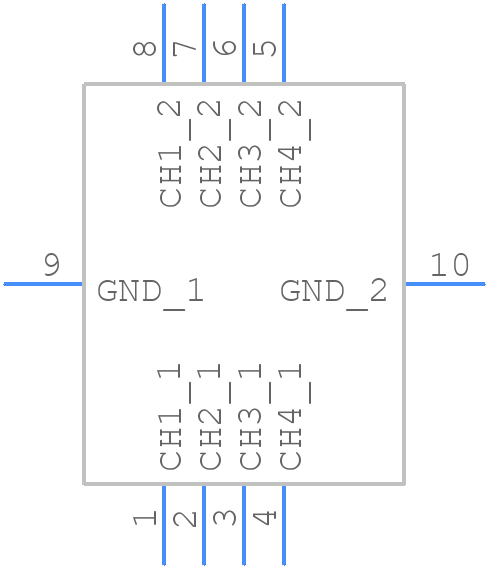

Use the download button to access the MEA2010LC100T002 schematic symbol, PCB footprint, and 3D model.
