TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
The MEA2010PE150T001 has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider adding a heat sink or thermal pad to the PCB design. Follow TDK's thermal design guidelines and consult with thermal management experts if necessary.
TDK provides specific soldering and rework conditions in their documentation. Follow the recommended temperature profiles, soldering times, and rework procedures to avoid damaging the component. It's also essential to use a soldering iron with a temperature control and a suitable solder alloy.
To ensure reliability and longevity, follow TDK's guidelines for environmental testing, such as temperature cycling, humidity, and vibration. Implement proper PCB design, component selection, and manufacturing processes to minimize the risk of failure. Consider using conformal coating or potting to protect the component from environmental stresses.
Common failure modes for the MEA2010PE150T001 include overheating, electrical overstress, and mechanical stress. Mitigate these risks by following proper design and manufacturing guidelines, ensuring adequate thermal management, and implementing protective circuits and components. Conduct thorough testing and validation to identify potential issues early on.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEA2010PE150T001 Overview

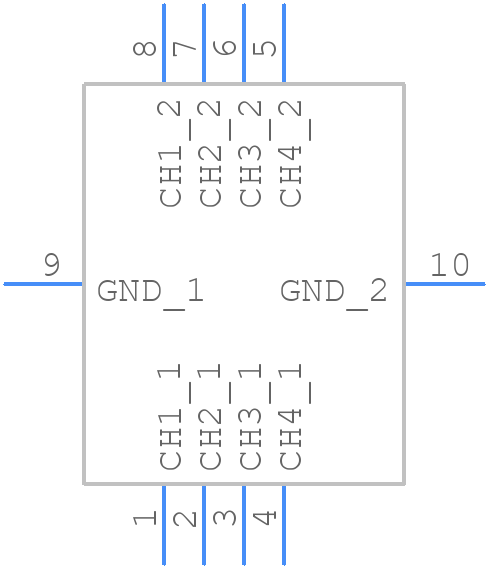

Use the download button to access the MEA2010PE150T001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEA20,
or try a keyword search, such as Data Line Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
