MEA2010PE220T001 - TDK

Description: 3-terminal Filters, Cut-Off frequency=250MHz, L x W x T :

Download MEA2010PE220T001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

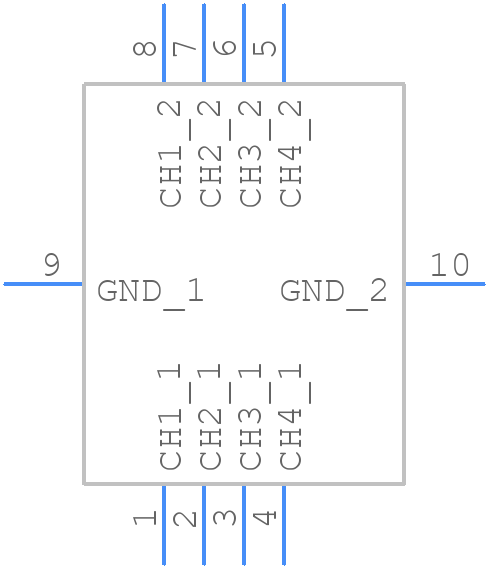

MEA2010PE220T001 - TDK - PCB symbol
click to zoom
PCB Footprints
MEA2010PE220T001 - TDK PCB footprint - Other - Other - MEA2010
click to zoom
3D Models
MEA2010PE220T001 - TDK - 3D model - Other - MEA2010
click to zoom

MEA2010PE220T001 Details

  • Manufacturer Part Number:

    MEA2010PE220T001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    8

  • Capacitance:

    22 µF

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.7 mm

  • Length:

    2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 Inch

  • Rated Current:

    6.3 A

  • Rated Voltage:

    0.1 V

  • Width:

    1 mm

MEA2010PE220T001 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MEA2010PE220T001 is available in the TDK Corporation's application note or can be obtained by contacting their technical support. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
  • While the MEA2010PE220T001 is a robust component, it's essential to evaluate its performance in a high-vibration environment. TDK Corporation provides vibration testing data, and it's recommended to consult with their technical support to determine the component's suitability for your specific application.
  • To prevent damage, it's recommended to handle the MEA2010PE220T001 by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat. Additionally, follow the recommended storage and handling procedures outlined in the datasheet or TDK Corporation's application notes.
  • The maximum allowable temperature for soldering the MEA2010PE220T001 is typically specified in the datasheet or TDK Corporation's application notes. As a general guideline, the soldering temperature should not exceed 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • The MEA2010PE220T001 is designed to operate in a specific temperature and humidity range. While it can tolerate some humidity, it's essential to evaluate its performance in your specific environment. Consult with TDK Corporation's technical support to determine the component's suitability for your application and to discuss any necessary precautions or protective measures.
