MEC1-150-02-S-D-A - SAMTEC

Description: Conn Card Edge SKT 100 POS 1mm Solder ST SMD Tube

Download MEC1-150-02-S-D-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MEC1-150-02-S-D-A - SAMTEC - PCB symbol
click to zoom
PCB Footprints

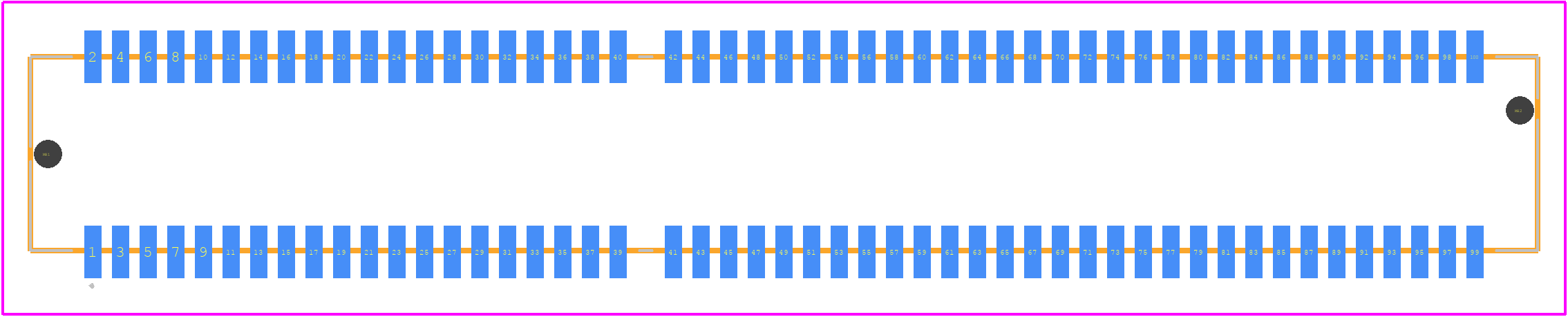

MEC1-150-02-S-D-A - SAMTEC PCB footprint - Other - Other - MEC1-150-02-S-D-A-3
click to zoom
3D Models
MEC1-150-02-S-D-A - SAMTEC - 3D model - Other - MEC1-150-02-S-D-A-3
click to zoom

MEC1-150-02-S-D-A Details

  • Manufacturer Part Number:

    MEC1-150-02-S-D-A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    4

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.275 inch

  • Body Depth:

    0.356 inch

  • Body Length:

    2.147 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    CENTRONIC

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.039 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    7.0612 mm

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    2.2 A

  • Terminal Pitch:

    1 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    100

MEC1-150-02-S-D-A Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the MEC1-150-02-S-D-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the MEC1-150-02-S-D-A connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
  • The maximum operating temperature of the MEC1-150-02-S-D-A connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
  • The MEC1-150-02-S-D-A connector has a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. If you need a connector for a wet environment, consider using a connector with a higher MSL rating or additional sealing measures.
  • The MEC1-150-02-S-D-A connector has a mating cycle life of 500 cycles minimum, according to Samtec's datasheet. This means it can withstand at least 500 connect-disconnect cycles without significant degradation in performance.
