MEC1-160-02-S-D-A - SAMTEC

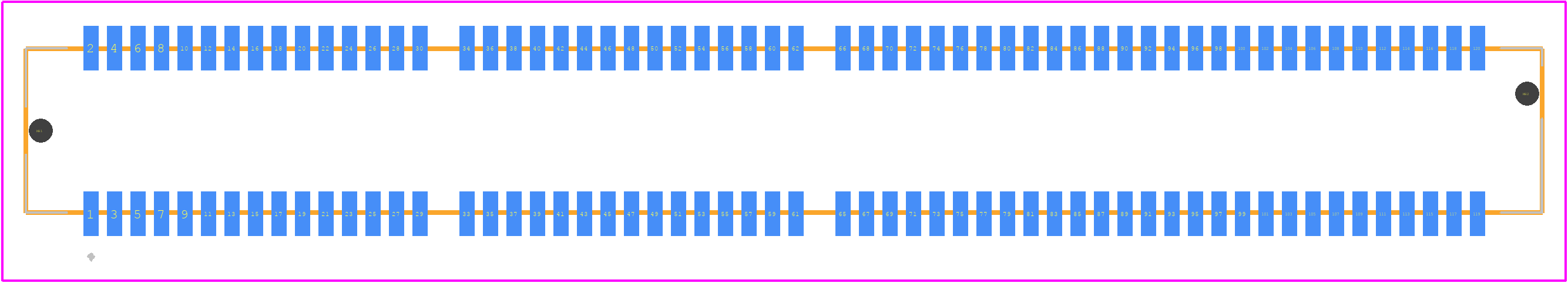

MEC1-160-02-S-D-A Details

• Manufacturer Part Number:

  MEC1-160-02-S-D-A

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  4

• Board Mounting Option:

  HOLE 0.04

• Body Breadth:

  0.275 inch

• Body Depth:

  0.356 inch

• Body Length:

  2.541 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  GOLD (30)

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  BERYLLIUM COPPER

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  750VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.039 inch

• Mating Contact Row Spacing:

  0.02 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  7.061 mm

• Packing Method:

  TUBE

• Plating Thickness:

  30u inch

• Polarization Key:

  POLAR PIN POSITION

• Rated Current (Signal):

  2.2 A

• Terminal Pitch:

  1 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  116
