The recommended torque for the screws on the MEC1-170-02-S-D-A connector is 0.5-1.5 N·m (4-12 in·lb).
Yes, the MEC1-170-02-S-D-A connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, automotive, and industrial control systems.
Yes, the MEC1-170-02-S-D-A connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 125°C, and is resistant to moisture, dust, and other environmental factors.
The MEC1-170-02-S-D-A connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
Yes, the MEC1-170-02-S-D-A connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEC1-170-02-S-D-A Overview

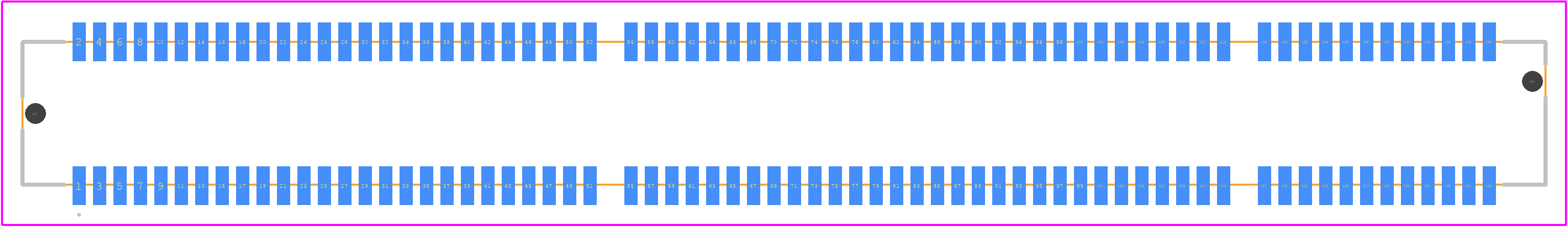

Use the download button to access the MEC1-170-02-S-D-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEC1-,
or try a keyword search, such as Headers and Edge Type Connectors
