MEC2-08-01-L-DV-WT footprint, schematic symbol and 3D model by SAMTEC

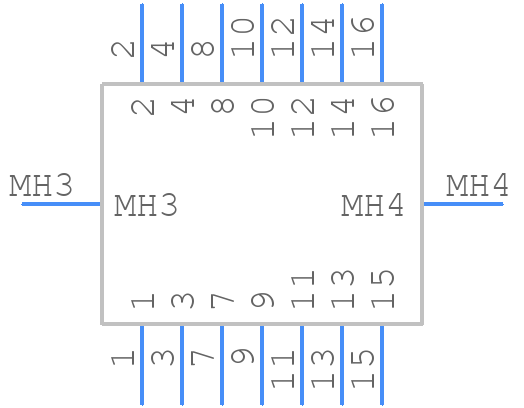

Symbol

click to zoom

PCB Footprints

MEC2-08-01-L-DV-WT - SAMTEC PCB footprint - Other - Other - MEC2-08-01-L-DV-WT-1

click to zoom

3D Models

MEC2-08-01-L-DV-WT - SAMTEC - 3D model - Other - MEC2-08-01-L-DV-WT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MEC2-08-01-L-DV-WT
Part Number MEC2-08-01-L-DV-WT
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - MEC2-08-01-L-DV-WT-1
Released Date Sep 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MEC2-08-01-L-DV-WT Details

Manufacturer Part Number:
MEC2-08-01-L-DV-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
POLARIZED
Body/Shell Style:
SOCKET
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Gender:
FEMALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
16

MEC2-08-01-L-DV-WT Frequently Asked Questions (FAQs)

The recommended torque for the screws on the MEC2-08-01-L-DV-WT connector is 0.5-1.5 N·m (4-12 in·lb).
Yes, the MEC2-08-01-L-DV-WT connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, industrial, and automotive.
Yes, the MEC2-08-01-L-DV-WT connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
The MEC2-08-01-L-DV-WT connector has a mating cycle life of 500 cycles minimum.
Yes, the MEC2-08-01-L-DV-WT connector is RoHS and REACH compliant, making it suitable for use in European markets.

Trust Checks

Expert Contribution

System Verified

Community Approved

MEC2-08-01-L-DV-WT Overview

Use the download button to access the MEC2-08-01-L-DV-WT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MEC2-, or try a keyword search, such as Headers and Edge Type Connectors
