MEC2-08-01-L-TH1-NP - SAMTEC

Description: Conn Card Edge SKT 16 POS 2mm Solder ST Through Hole

Download MEC2-08-01-L-TH1-NP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MEC2-08-01-L-TH1-NP - SAMTEC - PCB symbol
click to zoom
PCB Footprints

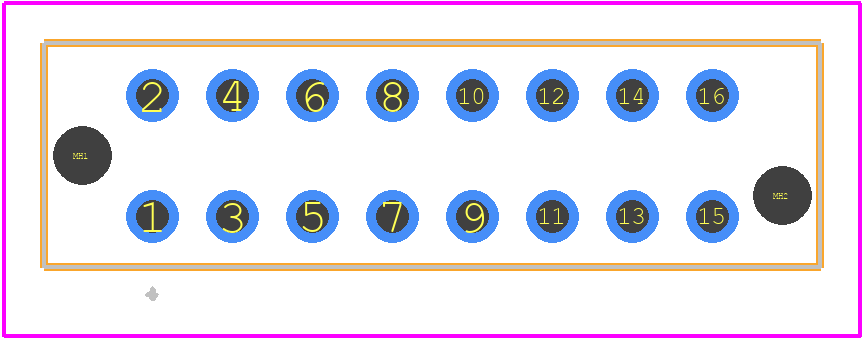

MEC2-08-01-L-TH1-NP - SAMTEC PCB footprint - Other - Other - MEC2-08-01-L-TH1-NP-3
click to zoom
3D Models
MEC2-08-01-L-TH1-NP - SAMTEC - 3D model - Other - MEC2-08-01-L-TH1-NP-3
click to zoom

MEC2-08-01-L-TH1-NP Details

  • Manufacturer Part Number:

    MEC2-08-01-L-TH1-NP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    6.5

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.22 inch

  • Body Depth:

    0.344 inch

  • Body Length:

    0.764 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    4.9 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.083 inch

  • Terminal Pitch:

    2.0066 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

MEC2-08-01-L-TH1-NP Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connection and prevent damage.
  • Yes, the MEC2-08-01-L-TH1-NP is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • While the connector is not specifically rated for outdoor use, it can be used in outdoor environments with proper sealing and protection. However, it's essential to ensure the connector is properly sealed and protected from moisture and environmental factors.
  • The MEC2-08-01-L-TH1-NP has an operating temperature range of -40°C to 105°C (-40°F to 221°F), making it suitable for a wide range of applications.
  • While it's possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-30 AWG to ensure optimal connection and minimize signal degradation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MEC2-08-01-L-TH1-NP Overview

Use the download button to access the MEC2-08-01-L-TH1-NP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MEC2-, or try a keyword search, such as Headers and Edge Type Connectors
