MECF-08-01-L-DV-K-TR - SAMTEC

Description: 16 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black

Download MECF-08-01-L-DV-K-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

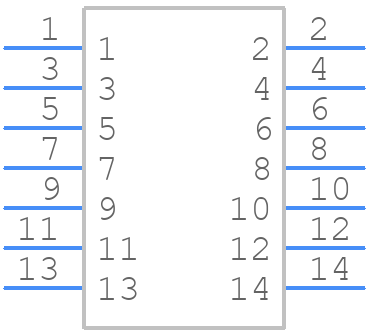

MECF-08-01-L-DV-K-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

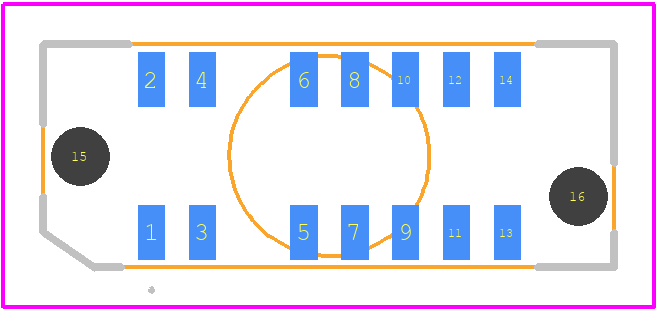

MECF-08-01-L-DV-K-TR - SAMTEC PCB footprint - Other - Other - MECF-08-01-L-DV-K-TR-2
click to zoom
3D Models
MECF-08-01-L-DV-K-TR - SAMTEC - 3D model - Other - MECF-08-01-L-DV-K-TR-2
click to zoom

MECF-08-01-L-DV-K-TR Details

  • Manufacturer Part Number:

    MECF-08-01-L-DV-K-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    4

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.22 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    0.562 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Packing Method:

    TR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3.5 A

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

MECF-08-01-L-DV-K-TR Frequently Asked Questions (FAQs)

  • The recommended mating sequence for MECF-08-01-L-DV-K-TR is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the MECF-08-01-L-DV-K-TR is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The MECF-08-01-L-DV-K-TR has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the MECF-08-01-L-DV-K-TR is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The typical lead time for delivery of MECF-08-01-L-DV-K-TR connectors varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders.
