MECF-20-01-L-DV-NP-WT footprint, schematic symbol and 3D model by SAMTEC

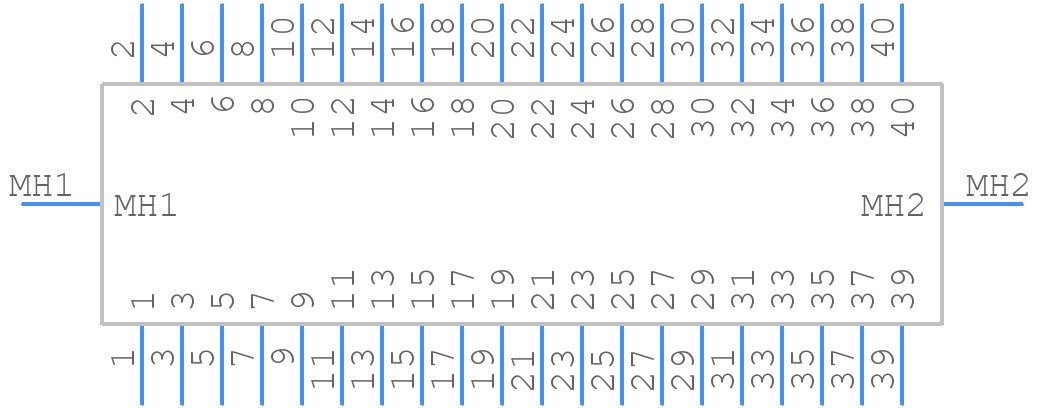

Symbol

click to zoom

PCB Footprints

MECF-20-01-L-DV-NP-WT - SAMTEC PCB footprint - Other - Other - MECF-20-01-L-DV-NP-WT-2

click to zoom

3D Models

MECF-20-01-L-DV-NP-WT - SAMTEC - 3D model - Other - MECF-20-01-L-DV-NP-WT-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MECF-20-01-L-DV-NP-WT
Part Number MECF-20-01-L-DV-NP-WT
Manufacturer SAMTEC
Pin Count 42
Part Category Connector
Package Category Other
Footprint Name Other - MECF-20-01-L-DV-NP-WT-2
Released Date Feb 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MECF-20-01-L-DV-NP-WT Details

Manufacturer Part Number:
MECF-20-01-L-DV-NP-WT
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Board Mounting Option:
PEG
Body Breadth:
0.22 inch
Body Depth:
0.346 inch
Body Length:
1.322 inch
Connector Type:
CARD EDGE CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
15 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
840VAC V
Durability:
100 Cycles
Filter Feature:
NO
Insulation Resistance:
100000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.05 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
3.81 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
3.5 A
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
40

MECF-20-01-L-DV-NP-WT Frequently Asked Questions (FAQs)

The recommended mating sequence for MECF-20-01-L-DV-NP-WT is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the MECF-20-01-L-DV-NP-WT is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
The MECF-20-01-L-DV-NP-WT has a temperature range of -40°C to +125°C, making it suitable for use in high-temperature applications. However, it's essential to ensure that the connector is properly derated for high-temperature use to prevent damage.
The MECF-20-01-L-DV-NP-WT is designed for use with specific cable types. While it may be possible to use it with other cable types, it's essential to consult with Samtec Inc or a qualified engineer to ensure compatibility and prevent damage to the connector or cable.
The typical lead time for MECF-20-01-L-DV-NP-WT can vary depending on the quantity and availability. However, Samtec Inc typically quotes a lead time of 6-8 weeks for standard orders. Expedited options may be available for an additional fee.

Trust Checks

Expert Contribution

System Verified

Community Approved

MECF-20-01-L-DV-NP-WT Overview

Use the download button to access the MECF-20-01-L-DV-NP-WT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MECF-, or try a keyword search, such as Headers and Edge Type Connectors
