- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MERA-533+
- Part Number MERA-533+
- Manufacturer Mini-Circuits
- Pin Count 11
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - MERA-533+-1
- Released Date Mar 10, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MERA-533+ Details
-
Manufacturer Part Number:
MERA-533+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
3.25 X 3.25 MM, ROHS COMPLIANT, PLASTIC, MCLP, CASE DL805, 8 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.64
-
Additional Feature:
LOW NOISE
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
MERA-533+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
To achieve the best possible noise figure, ensure that the input and output impedances are matched to 50 ohms, and the device is operated within its recommended operating conditions. Additionally, use a high-quality, low-noise power supply and minimize the length of the input and output transmission lines.
-
The maximum power handling capability of the MERA-533+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application notes, the device can handle up to +15 dBm of input power without damage. Exceeding this limit may result in reduced performance or even damage to the device.
-
While the MERA-533+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, impedance matching networks may be required to optimize performance. Consult with Mini-Circuits' application engineers or a qualified RF design expert for guidance on impedance matching and performance expectations.
-
The operating temperature range for the MERA-533+ is -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related performance characteristics.
Trust Checks
Expert Contribution
System Verified
Community Approved
MERA-533+ Overview

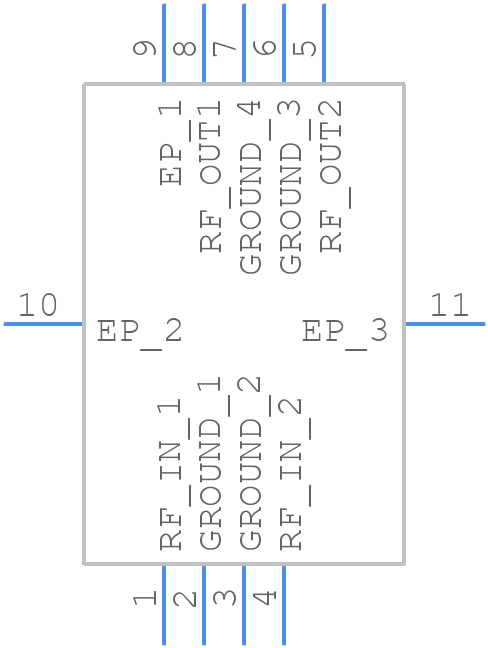

Use the download button to access the MERA-533+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MERA-,
or try a keyword search, such as RF/Microwave Amplifiers
