MET-46-T - Triad Magnetics

Description: Audio Transformers / Signal Transformers

Download MET-46-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

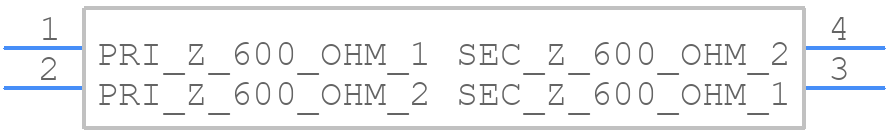

MET-46-T - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints
MET-46-T - Triad Magnetics PCB footprint - Other - Other - MET-46-T-3
click to zoom
3D Models
MET-46-T - Triad Magnetics - 3D model - Other - MET-46-T-3
click to zoom

MET-46-T Details

  • Manufacturer Part Number:

    MET-46-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6

  • Additional Feature:

    TURNS RATIO:1:1

  • Height:

    11.81 mm

  • Length:

    10.41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    3.5 kHz

  • Operating Frequency-Min:

    0.3 kHz

  • Primary Impedance:

    600 OHMS

  • Secondary Impedance:

    600 OHMS

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    7.87 mm
