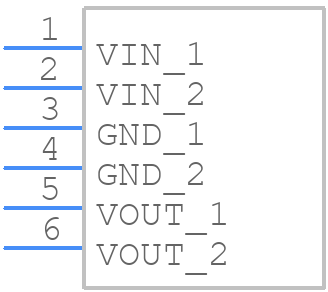

mEZD41501A-C - Monolithic Power Systems (MPS)

mEZD41501A-C Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for MEZD41501A-C should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. Additionally, placing the input capacitors close to the IC and using a low-ESR capacitor can help reduce noise and improve thermal performance.
• How do I ensure the device is stable and doesn't oscillate?
  To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
• What is the maximum ambient temperature for reliable operation?
  While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at high ambient temperatures (above 85°C) to ensure reliable operation. Consult with Monolithic Power Systems or a thermal expert for specific guidance.
• Can I use a different inductor value or type than recommended?
  While it's possible to use a different inductor value or type, it's not recommended without thorough analysis and testing. The recommended inductor value and type are chosen to ensure optimal performance, efficiency, and stability. Using a different inductor may affect the device's performance, and may require additional compensation or design changes.
• How do I troubleshoot issues with the device, such as low output voltage or high ripple?
  To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values against the datasheet recommendations. Use an oscilloscope to measure the output voltage ripple and input voltage noise. Consult the datasheet's troubleshooting section and application notes for guidance on specific issues.
