OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT; THERMAL; UNDER VOLTAGE
Ripple Voltage (Main Out):
0.0304 Vrms
Seated Height-Max:
20 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Total Power Output-Max:
3.3 W
Trim/Adjustable Output:
NO
Width:
4 mm
mEZD71201A-F Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance would involve placing the device near a thermal pad or a heat sink, and ensuring that there is adequate clearance around the device for airflow. Additionally, using thermal vias to connect the thermal pad to an internal layer can help to dissipate heat more efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to follow the guidelines for thermal design and layout, and to consider using a heat sink or thermal interface material to reduce the junction temperature. Additionally, the device should be operated within its specified temperature range and derated accordingly.
Exceeding the maximum junction temperature can lead to reduced reliability, decreased performance, and potentially even device failure. It is essential to ensure that the device is operated within its specified temperature range to prevent thermal damage.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback network for any anomalies. Ensure that the device is properly configured and that the feedback pin is connected correctly. Also, verify that the output capacitor is of sufficient value and type to maintain stability.
To minimize EMI and EMC issues, it is recommended to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary. Additionally, the device's switching frequency can be adjusted to minimize EMI emissions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
mEZD71201A-F Overview

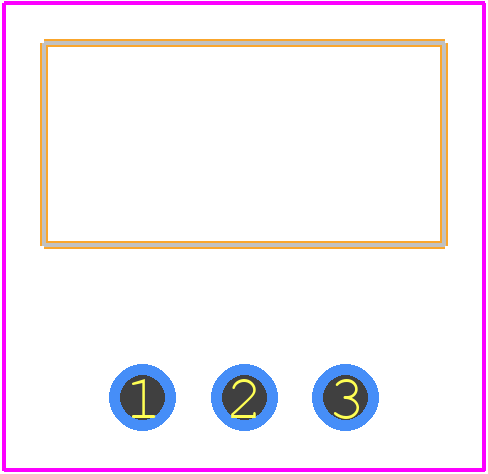

Use the download button to access the mEZD71201A-F schematic symbol, PCB footprint, and 3D model.
