Description:DC-DC CONVERTER, 5V, 1A; Power Supply Approvals:-; No. of Outputs:1 Output; Output Power Max:5W; Output Current Max:1A; Product Range:mEZD71201A Series; DC / DC Converter Mounting:Through Hole; Input Voltage DC Min:4.5V RoHS Compliant: Yes
OVER CURRENT; OVER TEMPERATURE; SHORT CIRCUIT; UNDER VOLTAGE
Ripple Voltage (Main Out):
0.0098 Vrms
Seated Height-Max:
20 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Total Power Output-Max:
5 W
Trim/Adjustable Output:
NO
Width:
4 mm
MEZD71201A-G Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2oz copper thickness is recommended for the thermal pad. Additionally, it is recommended to have a solid ground plane on the bottom layer of the PCB to help dissipate heat.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design guidelines, such as providing adequate heat sinking and airflow. Additionally, the device should be operated within its specified temperature range, and the input voltage should be derated accordingly. It is also recommended to use a thermistor or thermal sensor to monitor the device temperature and take corrective action if necessary.
The maximum allowed input voltage ripple for the MEZD71201A-G is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability. It is recommended to use a high-quality input filter capacitor to minimize input voltage ripple.
Yes, the MEZD71201A-G can be used in a redundant or parallel configuration to achieve higher power ratings or to improve system reliability. However, it is recommended to follow proper design guidelines and to ensure that the devices are properly synchronized and matched to avoid any potential issues.
The recommended input capacitor type for the MEZD71201A-G is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the maximum input voltage and should be placed as close to the device as possible to minimize input voltage ripple.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MEZD71201A-G Overview

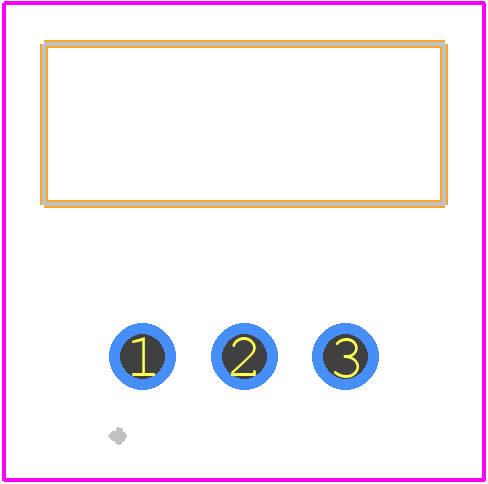

Use the download button to access the MEZD71201A-G schematic symbol, PCB footprint, and 3D model.
