MFM-20-5 - Mean Well

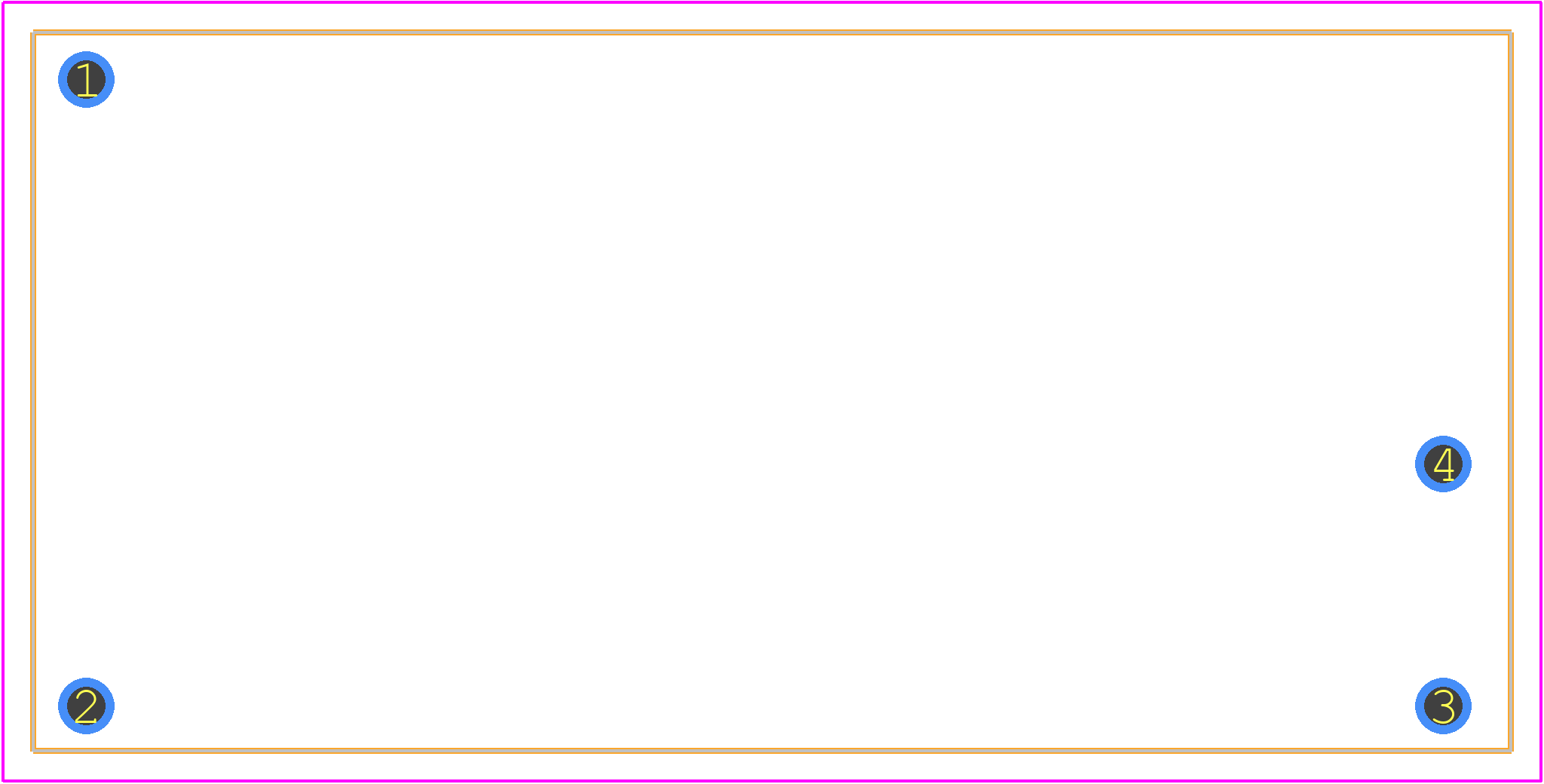

MFM-20-5 Details

• Manufacturer Part Number:

  MFM-20-5

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  Module-4

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  7.4

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  ANSI, IEC, EN

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  85%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  80 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-XDMA-P4

• Length:

  49 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -35 °C

• Output Current-Max:

  4 A

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  THERMAL; OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.053025 Vrms

• Seated Height-Max:

  23 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  20 W

• Trim/Adjustable Output:

  NO

• Width:

  23.8 mm
