MFP 223 P - KNITTER-SWITCH

Description: PCB Slide Switch DP On-On-On 0.2 A @ 30 V dc Slide

Download MFP 223 P Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MFP 223 P model

Email notifications will be applied after download.

Send part feedback

Symbol

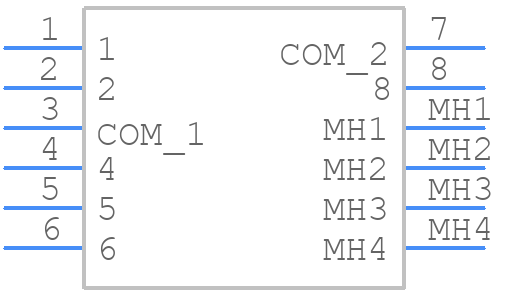

MFP 223 P - KNITTER-SWITCH - PCB symbol

PCB Footprints

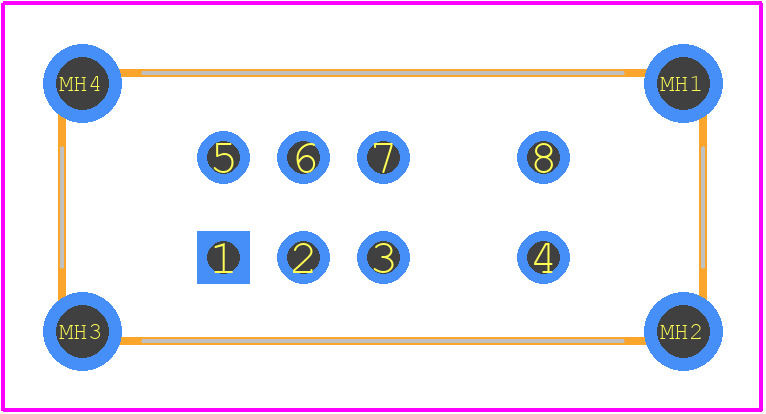

MFP 223 P - KNITTER-SWITCH PCB footprint - Other - Other - MFP 223 P-2

3D Models

MFP 223 P - KNITTER-SWITCH - 3D model - Other - MFP 223 P-2

Datasheet
Stock & Prices Price & Stock for MFP 223 P
Part Number MFP 223 P
Manufacturer KNITTER-SWITCH
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - MFP 223 P-2
Released Date Jul 3, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MFP 223 P Details

Manufacturer Part Number:
MFP 223 P
Manufacturer:
knitter-switch

Trust Checks

Expert Contribution

System Verified

Community Approved

MFP 223 P Overview

Use the download button to access the MFP 223 P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MFP 2, or try a keyword search, such as Slide Switches
