MFP126DRA-UL - KNITTER-SWITCH

MFP126DRA-UL Details

• Manufacturer Part Number:

  MFP126DRA-UL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  knitter-switch

• Actuator Color:

  BLACK

• Actuator Length:

  0.186 inch

• Actuator Material:

  NYLON

• Actuator Type:

  SLIDE

• Body Breadth:

  11.6586 mm

• Body Height:

  11.0236 mm

• Body Length or Diameter:

  12.7 mm

• Center Contact Material:

  BRASS

• Center Contact Plating:

  SILVER

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VRMS V

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

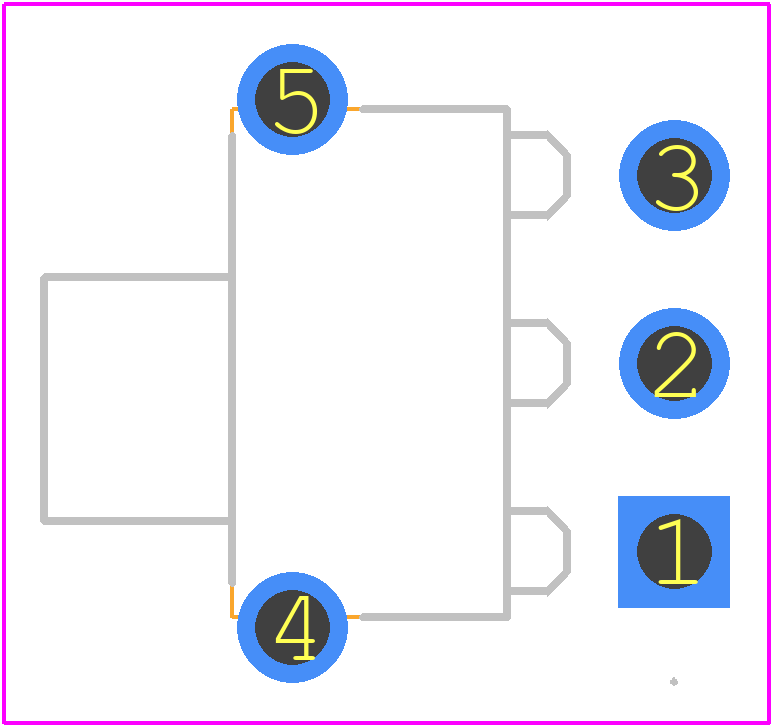

• PCB Hole Count:

  5

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.125 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
