MFRC52201HN1,115 - NXP

Description: RFID Reader IC 13.56MHz ISO 14443, MIFARE I²C, SPI, UART 2.5V ~ 3.3V 32-VFQFN Exposed Pad

Download MFRC52201HN1,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

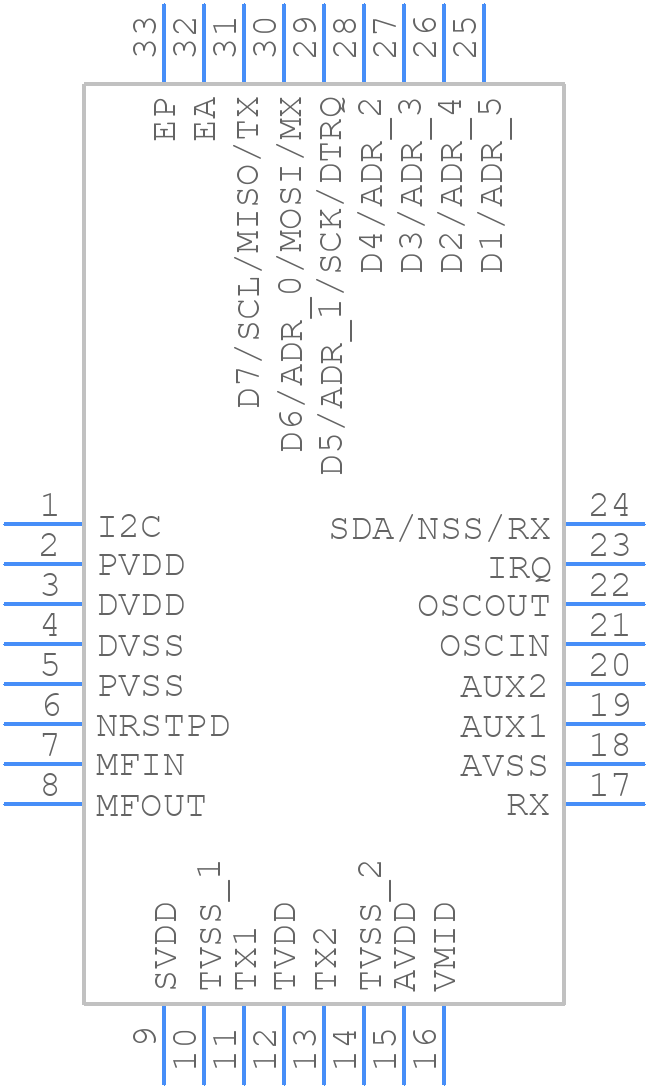

MFRC52201HN1,115 - NXP - PCB symbol
click to zoom
PCB Footprints
MFRC52201HN1,115 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32_2021
click to zoom
3D Models
MFRC52201HN1,115 - NXP - 3D model - Quad Flat No-Lead - HVQFN32_2021
click to zoom

MFRC52201HN1,115 Details

  • Manufacturer Part Number:

    MFRC52201HN1,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    SOT617-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • JESD-30 Code:

    S-PQCC-N32

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

MFRC52201HN1,115 Frequently Asked Questions (FAQs)

  • The maximum distance for reliable communication depends on various factors such as the type of tag, antenna design, and environment. However, in general, the MFRC52201HN1,115 can communicate with passive RFID tags up to 10 cm (4 inches) away.
  • The MFRC52201HN1,115 supports anti-collision algorithms such as the Slotted ALOHA protocol. Implementing anti-collision algorithms requires a combination of hardware and software design. You can use the datasheet and application notes provided by NXP Semiconductors as a reference to implement anti-collision algorithms.
  • The recommended antenna design for optimal performance with the MFRC52201HN1,115 is a dipole antenna with a length of around 7-10 cm (3-4 inches). The antenna should be tuned to the operating frequency of the MFRC52201HN1,115, which is 13.56 MHz.
  • The MFRC52201HN1,115 is a highly configurable device that supports multiple RFID protocols. You can configure the device using the registers and commands provided in the datasheet. For example, you can set the protocol selection register (PSR) to select the desired protocol.
  • The power consumption of the MFRC52201HN1,115 depends on the operating mode and frequency of use. In general, the device consumes around 100-200 mA in transmit mode and 10-20 mA in receive mode. To optimize power consumption for battery-powered applications, you can use power-saving modes, reduce the transmission power, and optimize the antenna design.
