MFS201N-21-Z - Nidec Copal

Description: SWITCH SLIDE DPDT 300MA 30V

Download MFS201N-21-Z Model

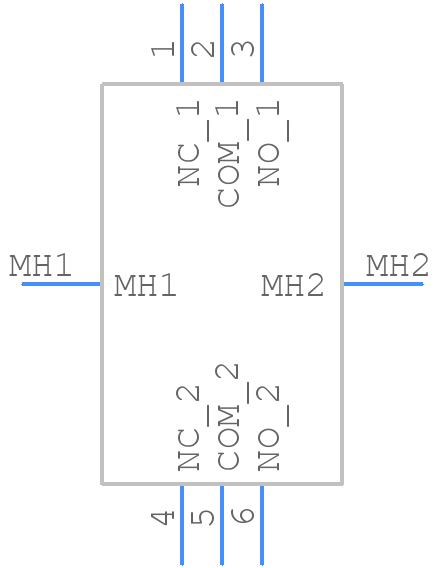

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MFS201N-21-Z - Nidec Copal PCB footprint - Other - Other - MFS201N-21-Z-1
click to zoom
3D Models
MFS201N-21-Z - Nidec Copal  - 3D model - Other - MFS201N-21-Z-1
click to zoom

MFS201N-21-Z Details

  • Manufacturer Part Number:

    MFS201N-21-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    Nidec Copal Electronics Corporation

  • YTEOL:

    7.45

  • Actuator Length:

    0.134 inch

  • Body Breadth:

    0.276 mm

  • Body Height:

    0.197 mm

  • Body Length or Diameter:

    0.354 mm

  • Contact Current(DC)-Max:

    0.3 A

  • Contact (DC) Max Rating R Load:

    0.3A@30VDC

  • Contact Function:

    ON-ON

  • Contact Resistance:

    0.02 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    5000 Cycle(s)

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    2

  • Operating Force-Max:

    3.43 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -10 °C

  • PCB Hole Count:

    6

  • Packing Method:

    BAG

  • Solderability:

    HAND

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE SWITCH

  • Terminal Length:

    0.102 inch

  • Termination Type:

    SOLDER

MFS201N-21-Z Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the manufacturer's application note or design guide, which provides detailed guidelines for optimal performance and thermal management.
  • Follow the recommended soldering profile and temperature guidelines provided by the manufacturer. Ensure proper soldering techniques, such as using a soldering iron with a temperature range of 250°C to 260°C, and avoid excessive soldering time.
  • Handle the component with care to avoid mechanical stress, and store it in a dry, cool place away from direct sunlight. Avoid exposing the component to moisture, extreme temperatures, or electrostatic discharge.
  • The MFS201N-21-Z is designed for general-purpose applications, but it may not be suitable for high-vibration or high-shock environments. Consult the manufacturer or a reliability engineer to determine the fan's suitability for your specific application.
  • Consult the manufacturer's troubleshooting guide or contact their technical support for assistance. Common issues can often be resolved by checking the fan's installation, wiring, and power supply, as well as ensuring proper airflow and clearance.
