The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for land pattern design and to ensure a solid ground plane under the component.
Thermal management is crucial for the MFS201N-9-Z. Ensure good airflow around the component, and consider using a heat sink or thermal interface material if the operating temperature exceeds 85°C. Follow the manufacturer's guidelines for thermal design and layout.
The recommended soldering profile can be found in the manufacturer's application note or by contacting their technical support. A general guideline is to follow the IPC-J-STD-020 standard for soldering profiles, with a peak temperature of 240°C and a dwell time of 30-60 seconds.
To ensure reliability and longevity, follow the manufacturer's guidelines for operating conditions, storage, and handling. Implement proper ESD protection, and consider using conformal coating or potting compounds to protect the component from moisture and contaminants.
Common failure modes include overheating, electrical overstress, and mechanical stress. Mitigation strategies include proper thermal design, voltage regulation, and mechanical protection. Implementing redundancy, error detection, and correction mechanisms can also help mitigate failures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MFS201N-9-Z Overview

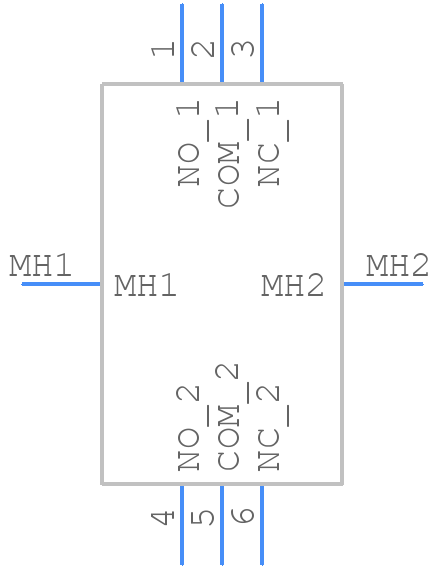

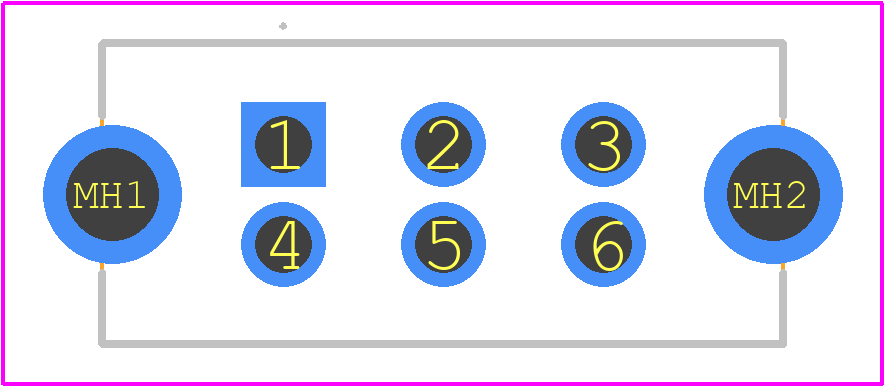

Use the download button to access the MFS201N-9-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MFS20,
or try a keyword search, such as Slide Switches
Suggested Parts
If you searched for MFS201N-9-Z, you might also be interested in these parts:
