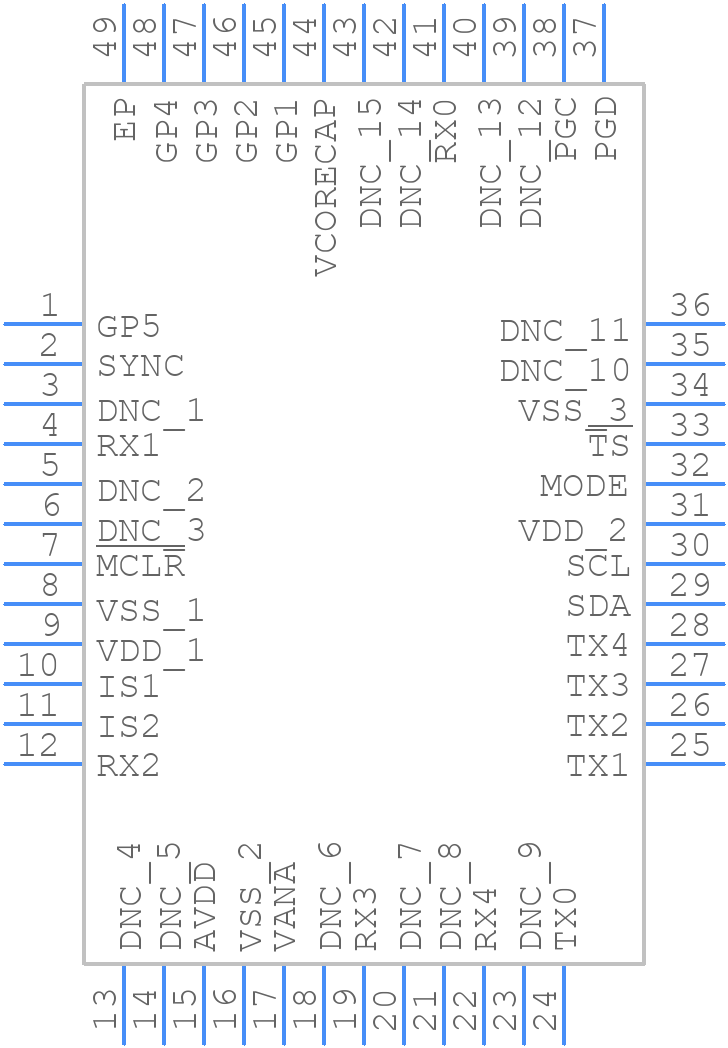

MGC3140-E/MV - Microchip

MGC3140-E/MV Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the MGC3140-E/MV?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce noise.
• How do I optimize the MGC3140-E/MV for low-power consumption?
  Use the device's built-in power-saving features, such as the low-power mode, and optimize the system's clock frequency and voltage supply. Additionally, consider using a low-dropout regulator to reduce power consumption.
• What is the recommended calibration procedure for the MGC3140-E/MV?
  Follow the calibration procedure outlined in the datasheet, which includes offset and gain calibration. Use a high-quality calibration signal source and ensure the device is in a stable thermal environment.
• How do I troubleshoot common issues with the MGC3140-E/MV, such as noise or oscillations?
  Use a mixed-signal oscilloscope to visualize the analog and digital signals. Check the PCB layout for noise coupling and ensure proper decoupling. Verify the device is properly configured and calibrated.
• What are the thermal management considerations for the MGC3140-E/MV?
  Ensure good thermal conductivity between the device and the PCB. Use thermal vias and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
