MGD3160AM315EK - NXP

Description: Gate Drivers EV Inverter Control; IGBT & SiC GDIC

Download MGD3160AM315EK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

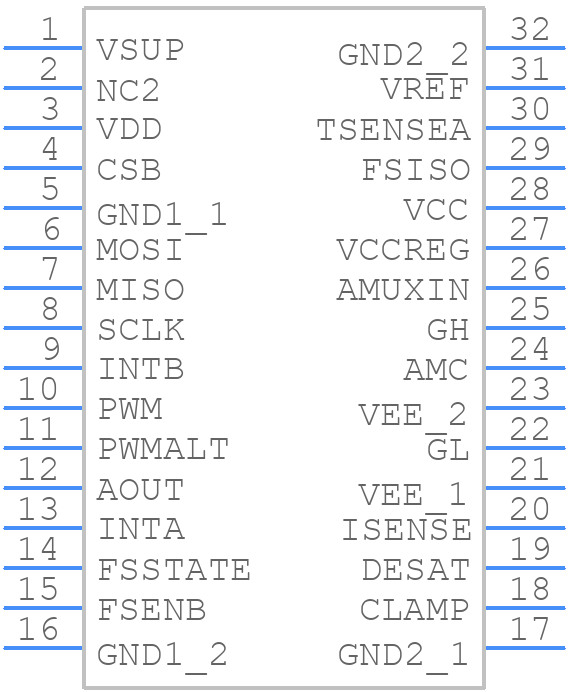

Symbol
MGD3160AM315EK - NXP - PCB symbol
click to zoom
PCB Footprints
MGD3160AM315EK - NXP PCB footprint - Small Outline Packages - Small Outline Packages - MGD3160AM315EK-
click to zoom
3D Models
MGD3160AM315EK - NXP - 3D model - Small Outline Packages - MGD3160AM315EK-
click to zoom

MGD3160AM315EK Details

  • Manufacturer Part Number:

    MGD3160AM315EK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    11

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G32

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP32,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-on Time:

    0.15 µs

  • Width:

    7.5 mm

MGD3160AM315EK Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and thermal management guide in the MGD3160AM315EK application note (AN11535). It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
  • The MGD3160AM315EK has multiple configuration options for optimizing efficiency and power consumption. Refer to the device's application note (AN11535) and the NXP Power Management Guide for detailed information on configuring the device for specific use cases.
  • NXP recommends using X7R or X5R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors. The recommended capacitance values are 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
  • NXP provides a troubleshooting guide in the MGD3160AM315EK application note (AN11535) that covers common issues and their solutions. Additionally, the NXP support team and online forums can provide further assistance.
  • The thermal resistance (RθJA) of the MGD3160AM315EK is 25°C/W, and the junction temperature rating is 150°C. It's essential to ensure that the device operates within these thermal limits to prevent overheating and damage.
