MGDDI-20-R-C - Gaia Converter

Description: DC DC CONVERTER 5V 5V 20W

Download MGDDI-20-R-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

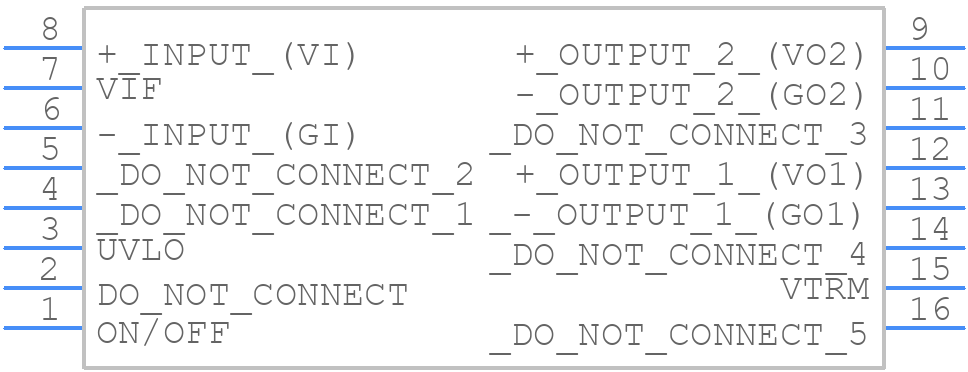

Symbol
MGDDI-20-R-C - Gaia Converter - PCB symbol
click to zoom

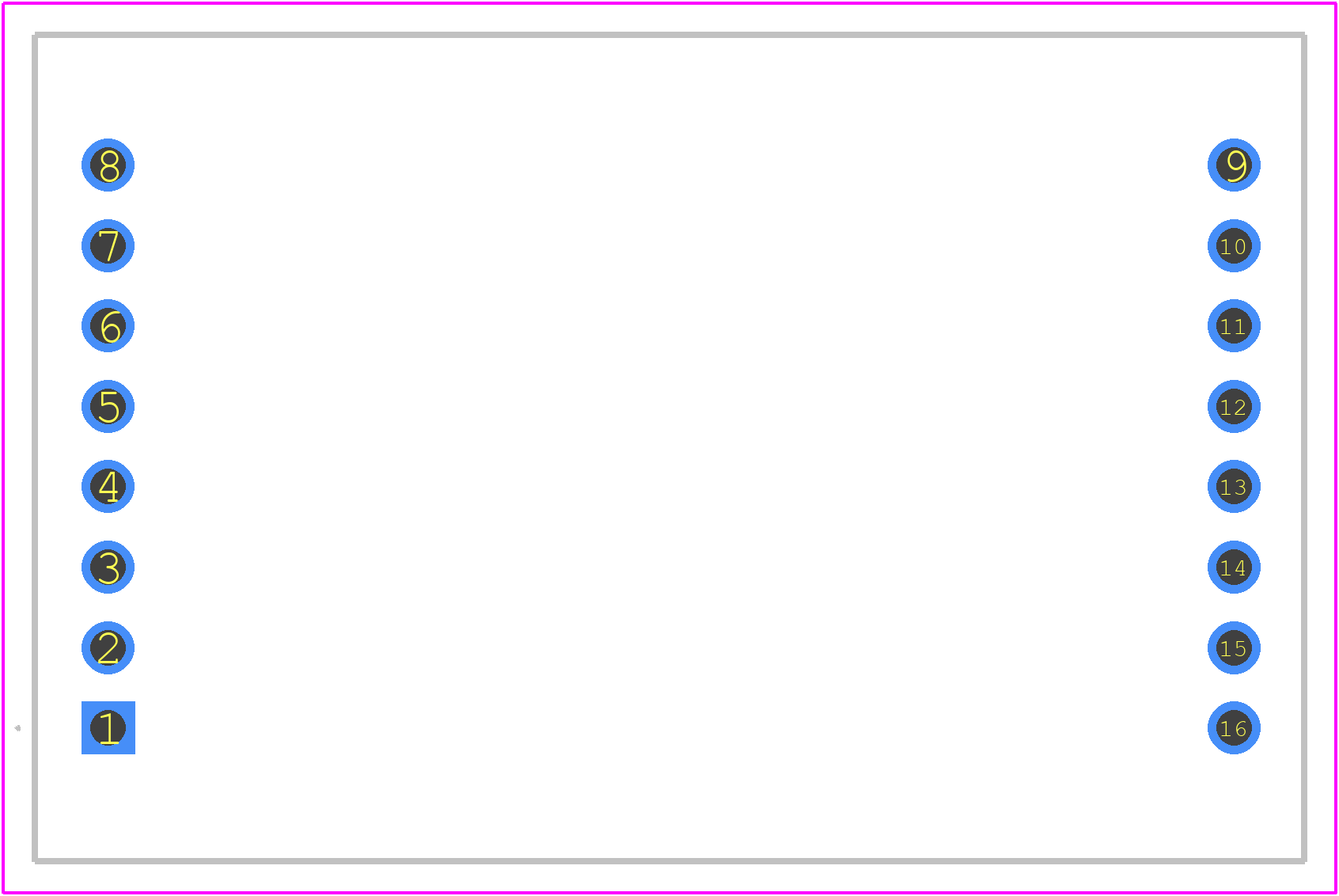

PCB Footprints
MGDDI-20-R-C - Gaia Converter PCB footprint - Other - Other - MGDDI-20-R-C-3
click to zoom
3D Models
MGDDI-20-R-C - Gaia Converter - 3D model - Other - MGDDI-20-R-C-3
click to zoom

MGDDI-20-R-C Details

  • Manufacturer Part Number:

    MGDDI-20-R-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-16

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • Manufacturer:

    GAIA Converter Inc

  • YTEOL:

    8

  • Additional Feature:

    ADDITIONAL 5V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    160 V

  • Input Voltage-Min:

    12 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-MDMA-T16

  • Length:

    40.1 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    12.9 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    GOLD FLASH OVER NICKEL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Width:

    26.1 mm

MGDDI-20-R-C Frequently Asked Questions (FAQs)

  • GAIA Converter Inc recommends a 4-layer PCB with a dedicated ground plane, and thermal vias under the device to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the top and bottom layers.
  • The MGDDI-20-R-C has built-in input voltage transient protection up to 100V for 100ms, and can withstand surges up to 200V for 10ms. However, it's recommended to add external surge protection devices for harsh environments.
  • GAIA Converter Inc recommends a maximum cable length of 10 meters for the output of the MGDDI-20-R-C to ensure signal integrity and minimize electromagnetic interference (EMI).
  • Yes, the MGDDI-20-R-C can be used in a redundant or parallel configuration, but it's essential to ensure proper synchronization and control of the devices to prevent unwanted interactions. GAIA Converter Inc recommends consulting with their application engineers for specific guidance.
  • The MTBF rating of the MGDDI-20-R-C is >500,000 hours at 40°C ambient temperature, calculated according to MIL-HDBK-217F.
