MGFS10243R3 footprint, schematic symbol and 3D model by Cosel

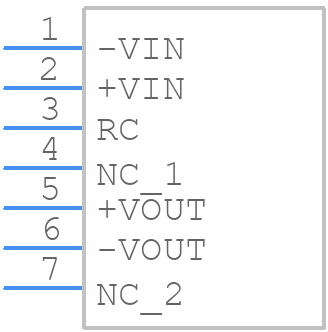

Symbol

click to zoom

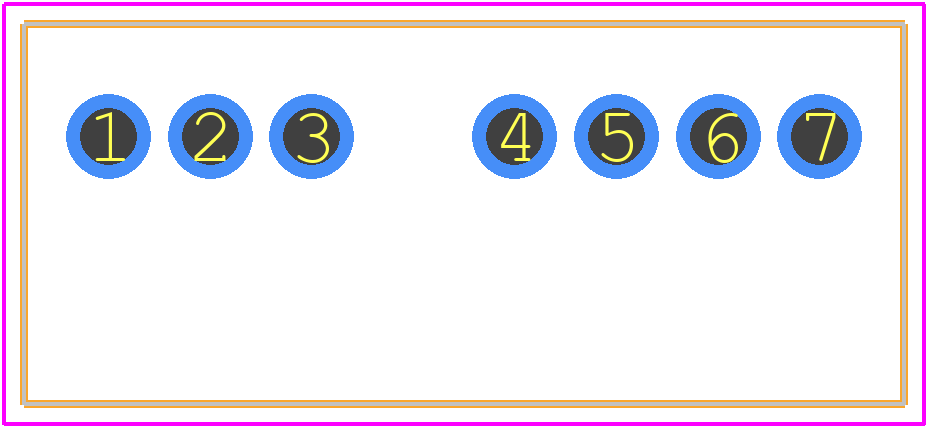

PCB Footprints

MGFS10243R3 - Cosel PCB footprint - Other - Other - MGFS10243R3-1

click to zoom

3D Models

MGFS10243R3 - Cosel - 3D model - Other - MGFS10243R3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MGFS10243R3
Part Number MGFS10243R3
Manufacturer Cosel
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - MGFS10243R3-1
Released Date Jun 16, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MGFS10243R3 Details

Manufacturer Part Number:
MGFS10243R3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-7
ECCN Code:
EAR99
Date Of Intro:
2017-11-15
Manufacturer:
Cosel USA Inc
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, C-UL, EN
Efficiency (Main Output):
86%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XSMA-T7
Length:
22 mm
Line Regulation-Max:
0.00066%
Load Regulation-Max:
0.606%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.6 A
Output Voltage-Max:
3.42 V
Output Voltage-Min:
3.21 V
Output Voltage-Nom:
3.3 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT
Ripple Voltage (Main Out):
0.10605 Vrms
Seated Height-Max:
12.5 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
8.58 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
9.5 mm

MGFS10243R3 Frequently Asked Questions (FAQs)

Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
The MGFS10243R3 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure that your system design meets the required safety certifications by following the guidelines in the datasheet and consulting with Cosel's technical support team.
The maximum allowable capacitance for the output filter capacitors is 2200uF. Exceeding this value may affect the stability of the DC-DC converter.
Consult the troubleshooting guide in the datasheet, and check the input voltage, output voltage, and current levels. Ensure that the DC-DC converter is properly configured and that the input and output capacitors are within the recommended specifications.
Yes, the MGFS10243R3 is designed for high-reliability and high-availability applications. It features a built-in overvoltage, undervoltage, and overcurrent protection, as well as a high MTBF (Mean Time Between Failures) rating.
