MGFS152405-R footprint, schematic symbol and 3D model by Cosel

Symbol

click to zoom

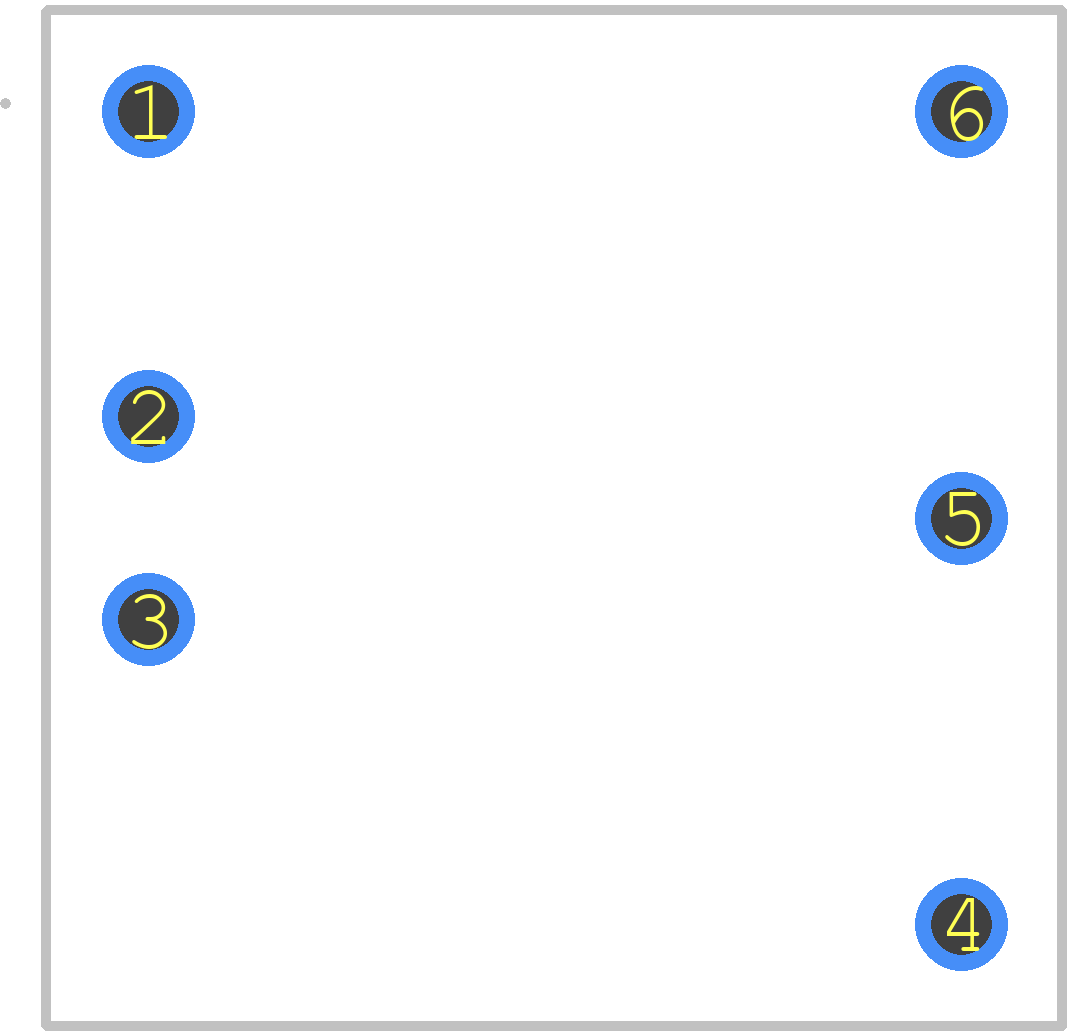

PCB Footprints

MGFS152405-R - Cosel PCB footprint - Other - Other - MGS15

click to zoom

3D Models

MGFS152405-R - Cosel - 3D model - Other - MGS15

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MGFS152405-R
Part Number MGFS152405-R
Manufacturer Cosel
Pin Count 6
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - MGS15
Released Date Apr 11, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MGFS152405-R Details

Manufacturer Part Number:
MGFS152405-R
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, CUL, C-UL-US, EN, TUV, UKCA, UL
Efficiency (Main Output):
88%
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Line Regulation-Max:
0.4%
Load Regulation-Max:
0.4%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.5 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,.8
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT
Ripple Voltage (Main Out):
0.053025 Vrms
Screening Level:
EN 62368-1
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
15 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm

MGFS152405-R Frequently Asked Questions (FAQs)

Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the module and consider adding a heat sink if high power operation is expected.
Follow proper PCB design and layout guidelines, use a metal enclosure, and ensure proper filtering and shielding. Cosel recommends using a common-mode choke and X-capacitors for EMI filtering. Consult the Cosel application note for more information.
The maximum allowable capacitance is 220uF. Exceeding this value may cause instability or oscillation. Consult the datasheet for recommended output filter capacitor values and configurations.
Yes, the MGFS152405-R can be used in redundant or N+1 configurations. However, ensure proper synchronization and control of the modules to prevent instability or oscillation. Consult Cosel's application notes for more information.
Cosel recommends a 5A to 10A slow-blow fuse, depending on the input voltage and current requirements. Consult the datasheet for specific recommendations and ensure the fuse is rated for the maximum input voltage.
