MGFS152405 - Cosel

Description: Cosel 15W Isolated DC-DC Converter, Vin 9 → 36 V, Vout 5V, I/O isolation 1500V

Download MGFS152405 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MGFS152405 - Cosel - PCB symbol
click to zoom
PCB Footprints

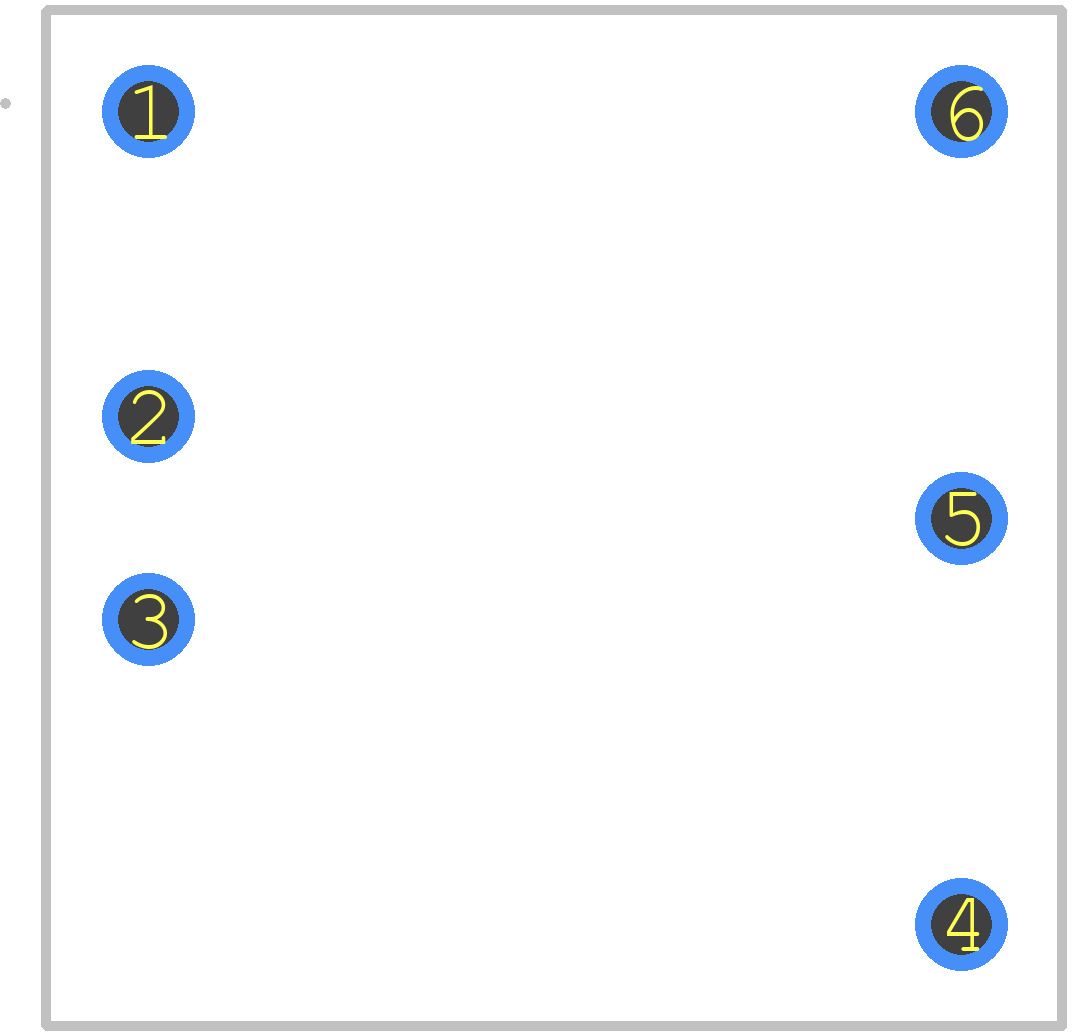

MGFS152405 - Cosel PCB footprint - Other - Other - MGS15
click to zoom
3D Models
MGFS152405 - Cosel - 3D model - Other - MGS15
click to zoom

MGFS152405 Details

  • Manufacturer Part Number:

    MGFS152405

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, C-UL, EN

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDMA-P6

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.001%

  • Load Regulation-Max:

    0.4%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    OVER CURRENT

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Seated Height-Max:

    10.4 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.03 s

  • Width:

    25.4 mm

MGFS152405 Frequently Asked Questions (FAQs)

  • Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow vents.
  • Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and shielded cables to minimize EMI. Add EMI filters or common-mode chokes if necessary. Consult the Cosel application note for more information.
  • The maximum allowable capacitance is 220uF. Exceeding this value may affect the converter's stability and performance. Consult the datasheet for recommended capacitor values and types.
  • The MGFS152405 is rated for operation up to 5,000 meters (16,400 ft) and 80°C ambient temperature. Derating may be necessary for higher altitudes or temperatures. Consult Cosel's environmental specifications and application notes for more information.
  • Consult the Cosel troubleshooting guide and application notes. Check the input voltage, output voltage, and current. Verify proper PCB layout, thermal management, and EMI shielding. Contact Cosel support for further assistance.
