MGFS152415-R footprint, schematic symbol and 3D model by Cosel

Symbol

click to zoom

PCB Footprints

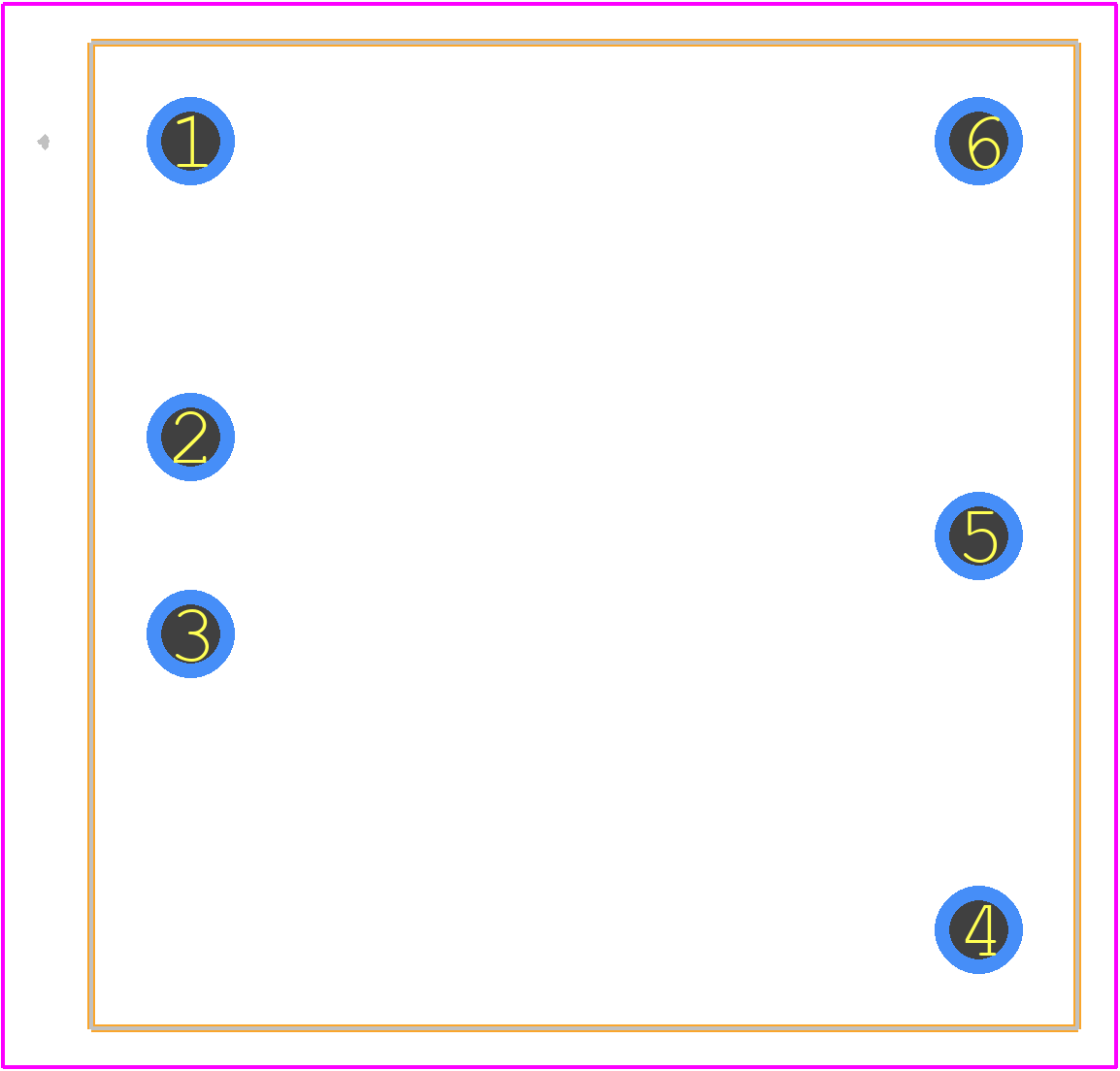

MGFS152415-R - Cosel PCB footprint - Other - Other - MGFS152415-R-1

click to zoom

3D Models

MGFS152415-R - Cosel - 3D model - Other - MGFS152415-R-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MGFS152415-R
Part Number MGFS152415-R
Manufacturer Cosel
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - MGFS152415-R-1
Released Date Feb 18, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MGFS152415-R Details

Manufacturer Part Number:
MGFS152415-R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6
ECCN Code:
EAR99
Manufacturer:
Cosel USA Inc
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, C-UL, EN
Efficiency (Main Output):
89%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Line Regulation-Max:
0.009%
Load Regulation-Max:
0.4%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
16.5 V
Output Voltage-Min:
13.5 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
15 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm

MGFS152415-R Frequently Asked Questions (FAQs)

Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 100°C.
Cosel recommends consulting with their application engineers to ensure the MGFS152415-R meets the specific safety and regulatory requirements of your application, such as UL, EN, or IEC standards.
The maximum allowable capacitance for the output filter capacitor is 220uF, as specified in the datasheet. Exceeding this value may affect the stability of the converter.
Yes, the MGFS152415-R is designed to withstand high-vibration and high-shock environments, but it's recommended to consult with Cosel's application engineers to ensure the converter is properly secured and mounted to meet the specific environmental requirements.
Cosel recommends using a fuse with a rating of 5A to 10A, depending on the input voltage and current requirements of the application. A slow-blow fuse type is recommended to ensure the converter's inrush current is handled properly.

Trust Checks

Expert Contribution

System Verified

Community Approved

MGFS152415-R Overview

Use the download button to access the MGFS152415-R schematic symbol, PCB footprint, and 3D model.
