MGFS302405 - Cosel

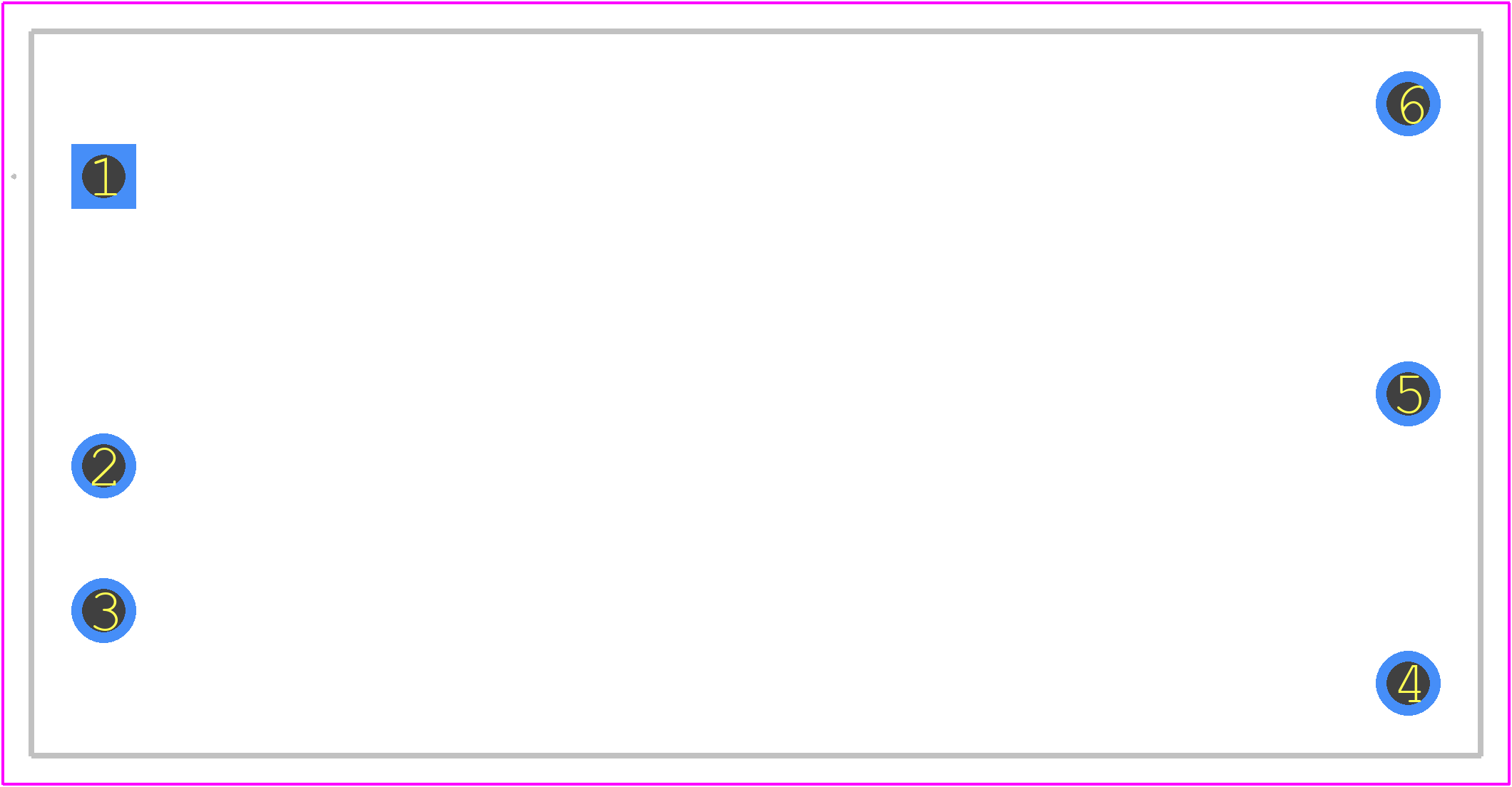

MGFS302405 Details

• Manufacturer Part Number:

  MGFS302405

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MODULE

• Package Description:

  PACKAGE-6

• Pin Count:

  6

• ECCN Code:

  EAR99

• Manufacturer:

  Cosel USA Inc

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, C-UL, EN

• Efficiency (Main Output):

  90%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P6

• Length:

  50.8 mm

• Line Regulation-Max:

  0.001%

• Load Regulation-Max:

  0.4%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  4.5 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER CURRENT, OVER VOLTAGE

• Ripple Voltage (Main Out):

  0.053025 Vrms

• Seated Height-Max:

  10.4 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  15

• Total Power Output-Max:

  30 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.03 s

• Width:

  25.4 mm
