Cosel recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure efficient heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
To ensure reliable start-up and operation with a high-capacitance output filter, Cosel recommends adding a soft-start circuit or a ramp-up circuit to limit the inrush current during start-up. Additionally, the output filter should be designed to minimize the voltage overshoot and ringing during start-up.
The maximum allowed output capacitance for the MGFS804812 is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage.
Yes, the MGFS804812 is designed to operate up to 5000 meters (16,400 feet) above sea level. However, the module's power derating should be considered, and the user should ensure that the module's operating temperature is within the specified range.
To implement remote sense, connect the sense lines (VS+ and VS-) to the point of load, and ensure that the sense lines are twisted and shielded to minimize noise and voltage drops. The sense lines should be connected to the module's sense pins, and the module will regulate the output voltage based on the sensed voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGFS804812 Overview

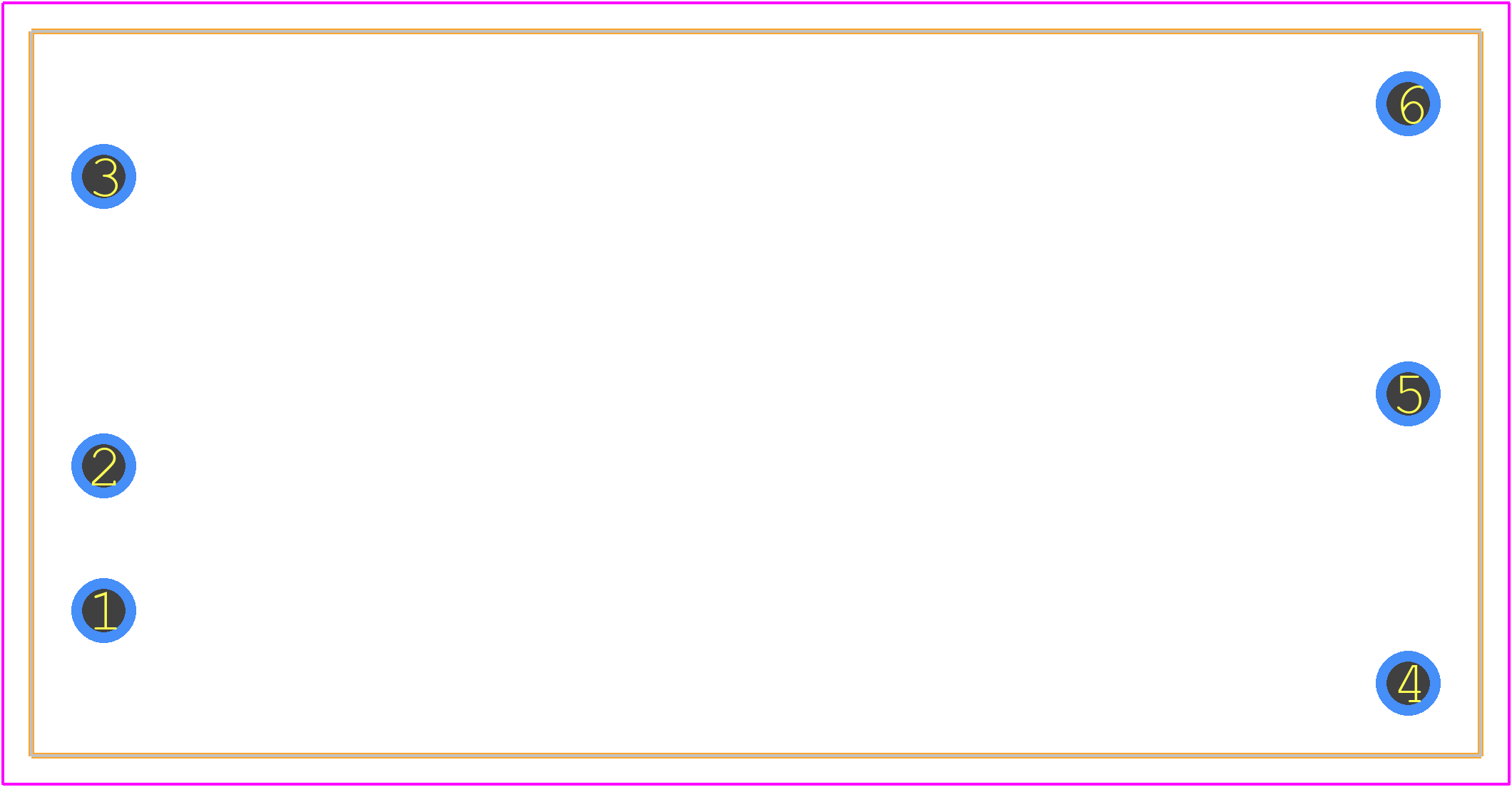

Use the download button to access the MGFS804812 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGFS8,
or try a keyword search, such as Power Supply Modules
