- Part Number MGFW62412
- Manufacturer Cosel
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - MGFW62412-3
- Released Date Aug 26, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MGFW62412 Details
-
Manufacturer Part Number:
MGFW62412
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
PACKAGE-7
-
ECCN Code:
EAR99
-
Manufacturer:
Cosel USA Inc
-
YTEOL:
6
-
Additional Feature:
ADDITIONAL -12V OUTPUT AVAILABLE, SINGLE 24V OUTPUT ALSO AVAILABLE
-
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
-
Approvals:
UL, C-UL, EN
-
Efficiency (Main Output):
87%
MGFW62412 Frequently Asked Questions (FAQs)
-
Cosel recommends a multi-layer PCB with a solid ground plane and a thermal relief pattern under the module. A minimum of 2 oz copper thickness is recommended. For thermal management, a heat sink with a thermal interface material (TIM) is recommended. The heat sink should be attached to the module using screws or a thermal adhesive.
-
To ensure reliability and longevity, Cosel recommends operating the module within the specified temperature range (–40°C to +85°C). Additionally, ensure proper airflow, avoid thermal hotspots, and use a suitable heat sink. Regular cleaning and maintenance can also help prevent dust and moisture buildup.
-
The MGFW62412 is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, Cosel recommends using a metal enclosure, keeping the module away from sensitive circuits, and using EMI filters or shielding if necessary.
-
Yes, the MGFW62412 can be used in redundant or parallel configurations. However, Cosel recommends consulting with their application engineers to ensure proper design and implementation, as well as to discuss any specific requirements or limitations.
-
The MTBF rating for the MGFW62412 is approximately 1,500,000 hours at 40°C, calculated according to MIL-HDBK-217F. However, this rating may vary depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
MGFW62412 Overview

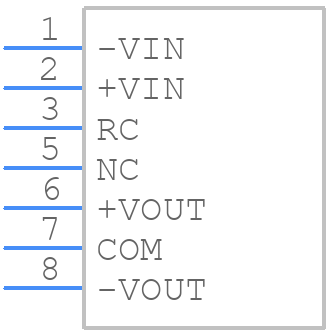

Use the download button to access the MGFW62412 schematic symbol, PCB footprint, and 3D model.
