ADDITIONAL -12V OUTPUT AVAILABLE, SINGLE 24V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, C-UL, EN
Efficiency (Main Output):
94%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Line Regulation-Max:
0.0072%
Load Regulation-Max:
5%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3.4 A
Output Voltage-Max:
12.492 V
Output Voltage-Min:
11.765 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT, OVER VOLTAGE
Ripple Voltage (Main Out):
0.09544 Vrms
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
81.6 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
25.4 mm
MGFW802412 Frequently Asked Questions (FAQs)
Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure EMC, Cosel recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet the relevant EMC standards.
Cosel provides a derating curve in the datasheet, which shows the recommended output power reduction at high temperatures to ensure reliable operation. For example, at 80°C, the output power should be derated by 20%.
Yes, the MGFW802412 can be used in a redundant or parallel configuration, but Cosel recommends consulting with their application engineers to ensure proper design and implementation to avoid any potential issues.
Cosel provides an MTBF of 1,500,000 hours at 40°C, calculated according to MIL-HDBK-217F, which indicates a high level of reliability for the MGFW802412.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGFW802412 Overview

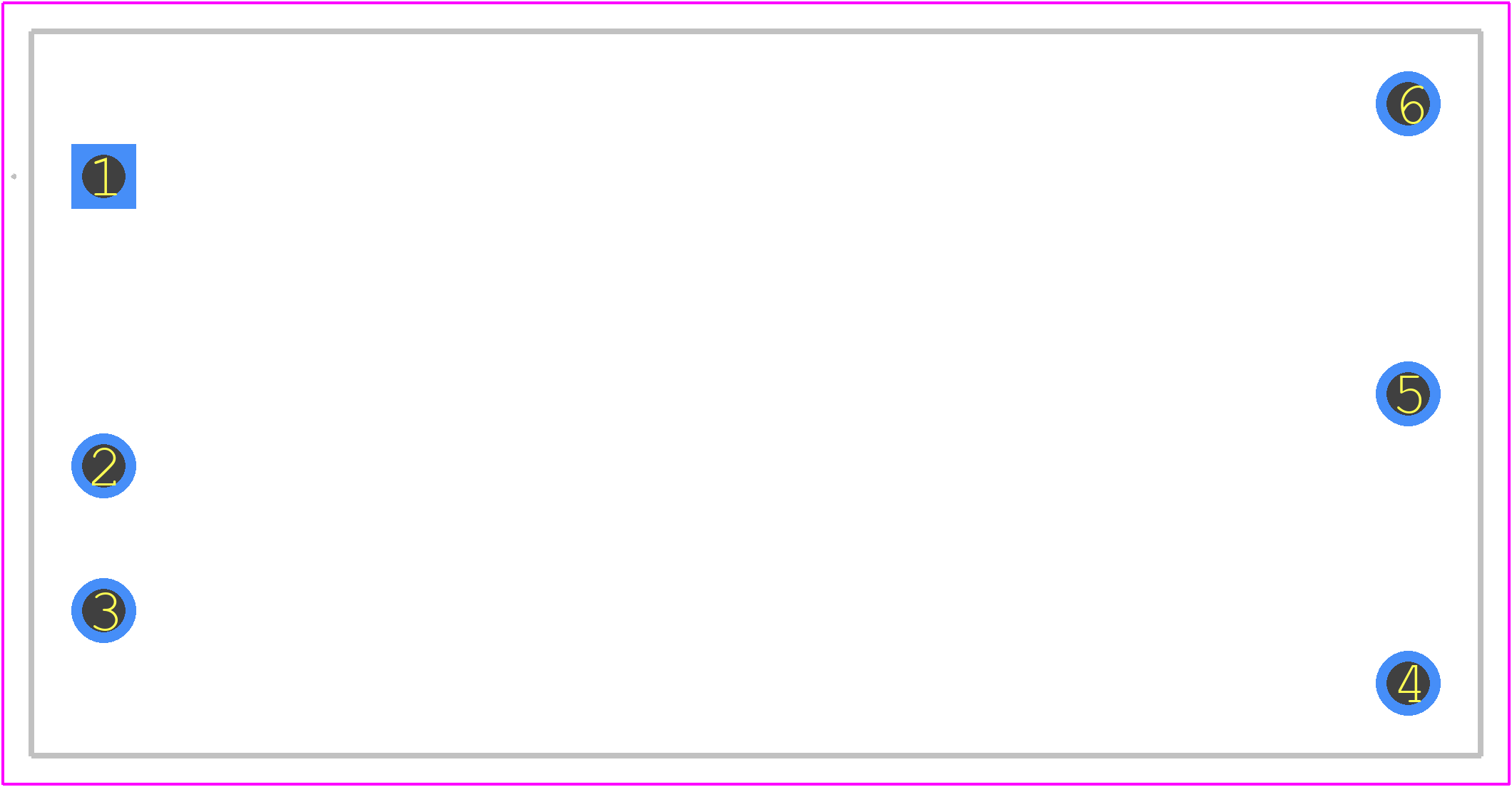

Use the download button to access the MGFW802412 schematic symbol, PCB footprint, and 3D model.
