ADDITIONAL -15V OUTPUT AVAILABLE, SINGLE 30V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, C-UL, EN
Efficiency (Main Output):
94%
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Line Regulation-Max:
0.01125%
Load Regulation-Max:
5%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.7 A
Output Voltage-Max:
15.505 V
Output Voltage-Min:
14.602 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT, OVER VOLTAGE
Ripple Voltage (Main Out):
0.09544 Vrms
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
81 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
25.4 mm
MGFW802415 Frequently Asked Questions (FAQs)
Cosel recommends a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended for the primary and secondary windings. Additionally, a thermal interface material (TIM) should be used between the module and the heatsink to ensure efficient heat transfer.
To ensure EMC, Cosel recommends using a shielded enclosure, keeping the module away from sensitive components, and using a common-mode choke on the input lines. Additionally, the module should be placed at least 10mm away from any metal objects, and the input and output cables should be shielded and routed away from each other.
The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may cause instability or oscillation in the output voltage. Cosel recommends using a low-ESR capacitor with a voltage rating of at least 1.5 times the output voltage.
Yes, the MGFW802415 can be used in a redundant or parallel configuration. However, Cosel recommends using a dedicated ORing diode or a redundancy module to ensure proper operation and to prevent back-feeding of power. Additionally, the modules should be synchronized using a clock signal to ensure proper phase alignment.
The MGFW802415 is designed to operate up to an altitude of 5,000 meters (16,400 feet) above sea level. However, derating of the output power may be necessary at higher altitudes due to the decrease in air pressure and cooling efficiency.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGFW802415 Overview

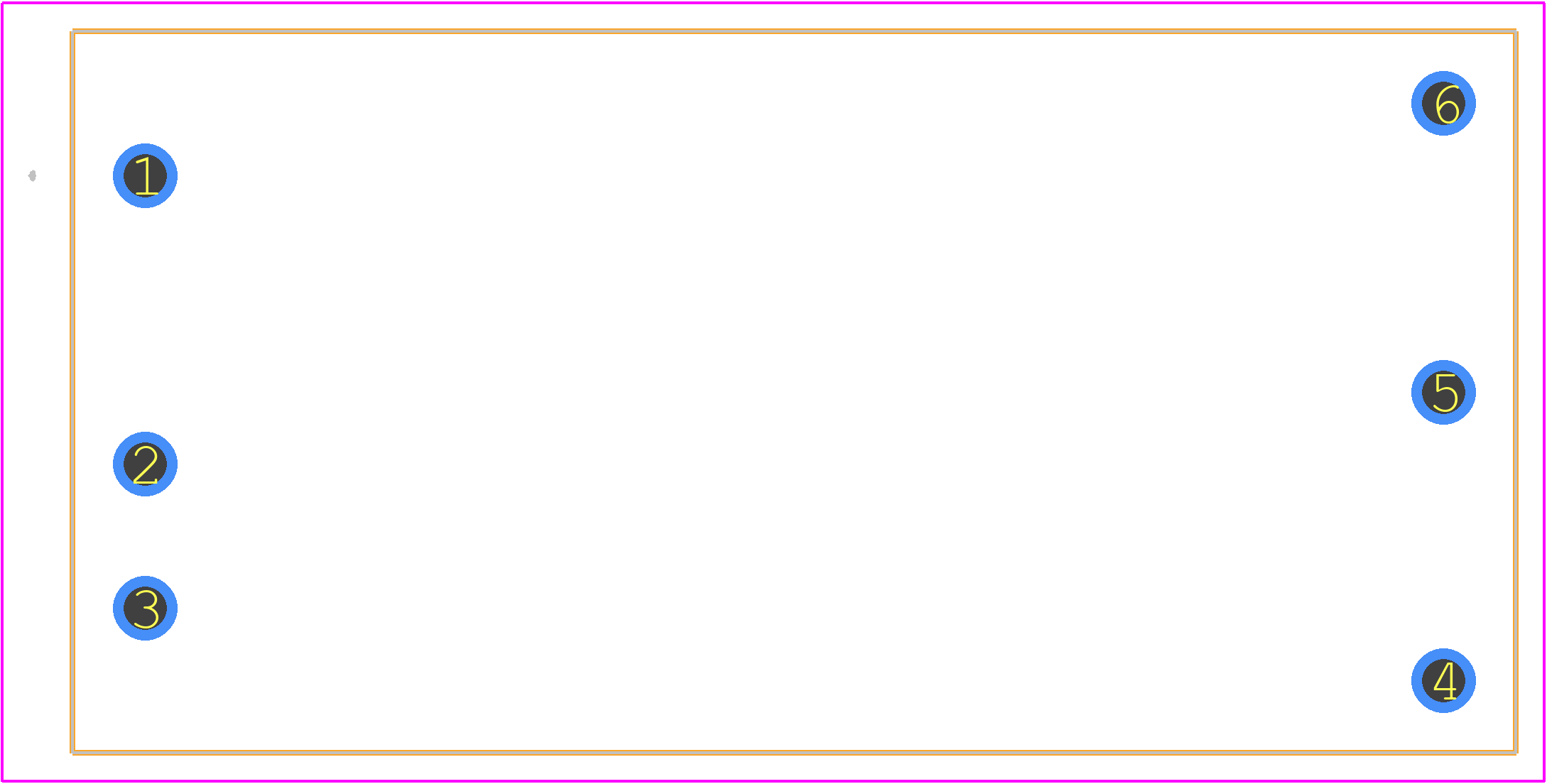

Use the download button to access the MGFW802415 schematic symbol, PCB footprint, and 3D model.
