ADDITIONAL -15V OUTPUT AVAILABLE, SINGLE 30V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, C-UL, EN
Efficiency (Main Output):
94%
Input Voltage-Max:
76 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Line Regulation-Max:
0.01125%
Load Regulation-Max:
5%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2.7 A
Output Voltage-Max:
15.505 V
Output Voltage-Min:
14.602 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
260
Protections:
OVER CURRENT, OVER VOLTAGE
Ripple Voltage (Main Out):
0.09544 Vrms
Seated Height-Max:
10.4 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
15
Total Power Output-Max:
81 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.03 s
Width:
25.4 mm
MGFW804815 Frequently Asked Questions (FAQs)
Cosel recommends a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink to ensure efficient heat transfer.
To ensure EMC, Cosel recommends following proper PCB layout and design guidelines, using a metal enclosure, and implementing EMI filtering and shielding. Additionally, the module should be installed in a way that minimizes radiation and conduction of electromagnetic interference.
The derating curve for the MGFW804815 is typically provided in the datasheet or can be obtained from Cosel's technical support. The derating curve shows the reduction in output power as a function of temperature, altitude, and other environmental factors. Engineers should consult the derating curve to ensure the module operates within its specified ratings and to avoid overheating or overvoltage conditions.
Yes, the MGFW804815 can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, engineers should consult Cosel's technical support to ensure proper configuration, synchronization, and monitoring of the modules to avoid any potential issues or damage.
Cosel recommends using input and output filtering components such as capacitors, inductors, and resistors to ensure electromagnetic compatibility and to reduce electromagnetic interference. The specific component values and configurations may vary depending on the application and system requirements. Engineers should consult Cosel's technical support or the datasheet for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGFW804815 Overview

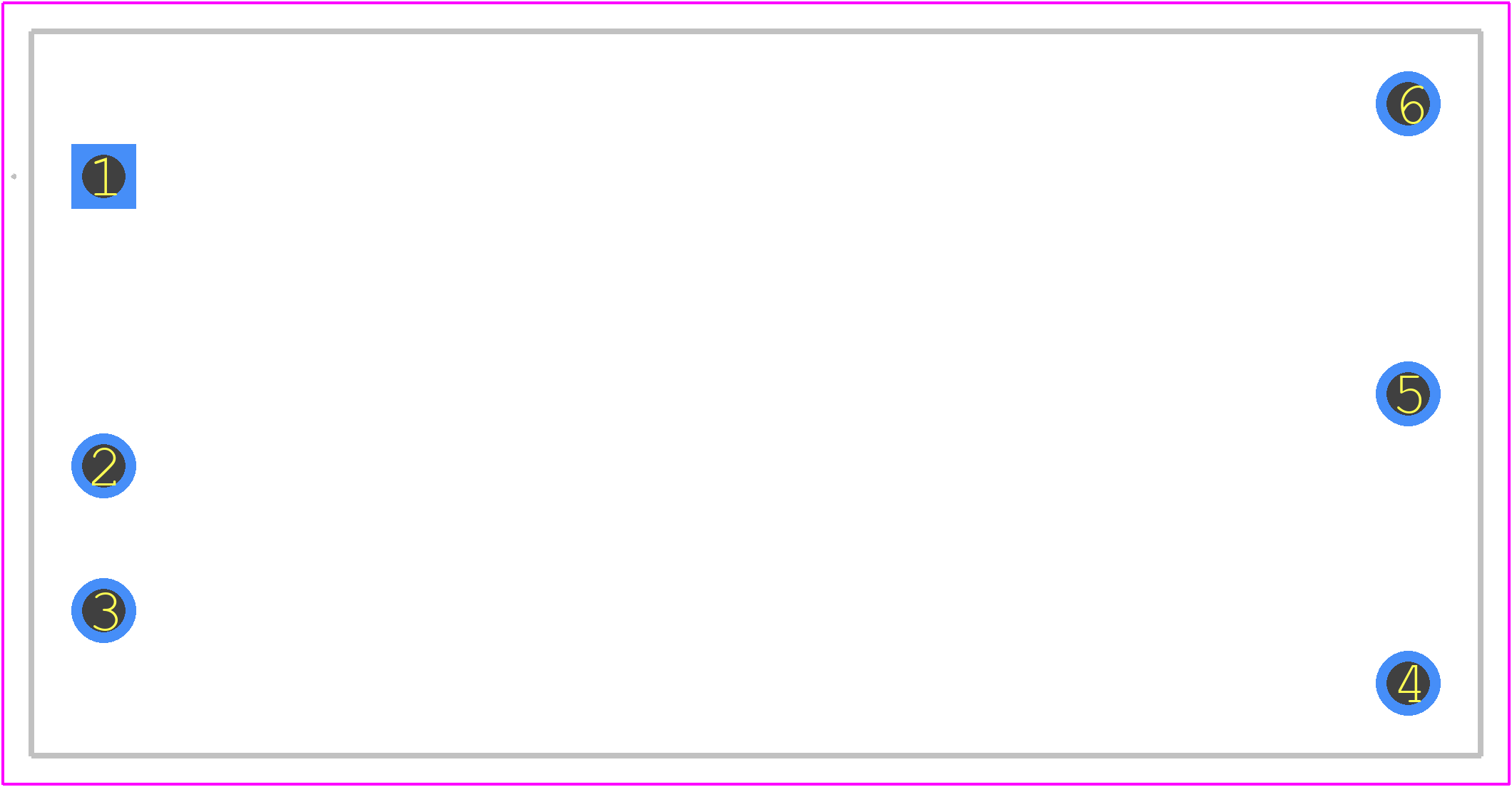

Use the download button to access the MGFW804815 schematic symbol, PCB footprint, and 3D model.
