MGJ1D151505MPC-R7 - Murata Electronics

Description: MURATA POWER SOLUTIONS - MGJ1D151505MPC-R7 - Isolated Board Mount DC/DC Converter, Gate Drive, 2 Output, 1 W, 15 V, 50 mA, -5 V

Download MGJ1D151505MPC-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

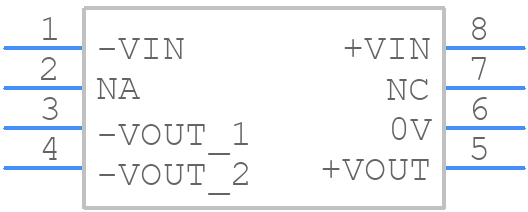

MGJ1D151505MPC-R7 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MGJ1D151505MPC-R7 - Murata Electronics PCB footprint - Other - Other - MGJ1D151505MPC-R7-3
click to zoom
3D Models
MGJ1D151505MPC-R7 - Murata Electronics - 3D model - Other - MGJ1D151505MPC-R7-3
click to zoom

MGJ1D151505MPC-R7 Details

  • Manufacturer Part Number:

    MGJ1D151505MPC-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Gold (Au)

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGJ1D151505MPC-R7 Overview

Use the download button to access the MGJ1D151505MPC-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ1D, or try a keyword search, such as Power Supply Modules
