MGJ2D121505MPC-R7 - Murata Electronics

Description: Isolated DC/DC Converters SMT 12-15/5V 5.2KV

Download MGJ2D121505MPC-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

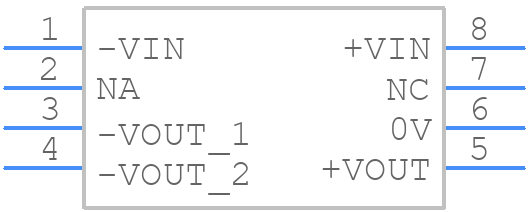

Symbol
MGJ2D121505MPC-R7 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MGJ2D121505MPC-R7 - Murata Electronics PCB footprint - Other - Other - MGJ2D121505MPC-R7-1
click to zoom
3D Models
MGJ2D121505MPC-R7 - Murata Electronics - 3D model - Other - MGJ2D121505MPC-R7-1
click to zoom

MGJ2D121505MPC-R7 Details

  • Manufacturer Part Number:

    MGJ2D121505MPC-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Additional Feature:

    -5V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL

  • Efficiency (Main Output):

    77%

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-N8

  • Length:

    19.94 mm

  • Line Regulation-Max:

    1.25%

  • Load Regulation-Max:

    14%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8LEAD,.55

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0194425 Vrms

  • Screening Level:

    UL 62368-1

  • Seated Height-Max:

    4.84 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    14.99 mm

MGJ2D121505MPC-R7 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MGJ2D121505MPC-R7 can be found in Murata's application note 'Recommended Land Pattern' (PDF). It provides detailed information on the recommended pad layout, dimensions, and spacing for optimal performance and reliability.
  • To handle the MGJ2D121505MPC-R7's sensitivity to moisture, follow Murata's recommended storage and handling procedures, such as storing the components in a dry environment (less than 20% RH) and using a desiccant package. Additionally, ensure that the components are soldered within the recommended time frame after opening the package.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. For optimal performance, it's recommended to operate the MGJ2D121505MPC-R7 within a temperature range of -20°C to +85°C.
  • While the MGJ2D121505MPC-R7 is designed to be robust, it's not specifically designed for high-vibration environments. If you plan to use the component in such an environment, it's recommended to perform additional testing and validation to ensure the component's performance and reliability meet your requirements.
  • To ensure the MGJ2D121505MPC-R7's EMC, follow Murata's recommended design guidelines, such as using a shielded enclosure, minimizing loop areas, and using proper grounding techniques. Additionally, perform EMC testing and validation to ensure the component meets your specific requirements.
