MGJ2D152005MPC-R7 - Murata Electronics

Description: Isolated DC/DC Converters DC/DC 1W SM 15-20/5V 5.2KV

Download MGJ2D152005MPC-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

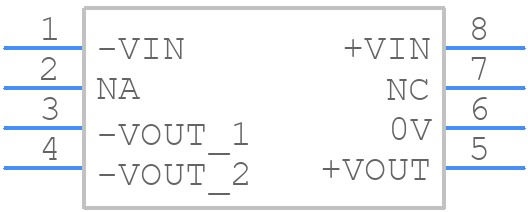

Symbol
MGJ2D152005MPC-R7 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
MGJ2D152005MPC-R7 - Murata Electronics PCB footprint - Other - Other - MGJ2D152005MPC-R7-2
click to zoom
3D Models
MGJ2D152005MPC-R7 - Murata Electronics - 3D model - Other - MGJ2D152005MPC-R7-2
click to zoom

MGJ2D152005MPC-R7 Details

  • Manufacturer Part Number:

    MGJ2D152005MPC-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • Additional Feature:

    -5V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL

  • Efficiency (Main Output):

    76%

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    13.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-XDMA-N8

  • Length:

    19.94 mm

  • Line Regulation-Max:

    1.2%

  • Load Regulation-Max:

    9%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.08 A

  • Output Voltage-Nom:

    20 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8LEAD,.55

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0159075 Vrms

  • Screening Level:

    UL 62368-1

  • Seated Height-Max:

    4.84 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    14.99 mm

MGJ2D152005MPC-R7 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MGJ2D152005MPC-R7 is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
  • The MGJ2D152005MPC-R7 is rated for operation up to 125°C, but it's essential to consider the derating curve and thermal management when using it in high-temperature applications. Ensure that the component is properly cooled, and the operating temperature is within the specified range to prevent thermal runaway and ensure reliability.
  • To prevent damage during PCB assembly, handle the MGJ2D152005MPC-R7 by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat. Ensure that the PCB is properly cleaned and dried before assembly, and use a soldering iron with a temperature-controlled tip to prevent overheating.
  • The recommended soldering profile for MGJ2D152005MPC-R7 is a peak temperature of 260°C, with a dwell time of 10-30 seconds. Ensure that the soldering iron is set to the correct temperature, and the component is properly aligned with the PCB pads to prevent thermal damage and ensure reliable soldering.
  • The MGJ2D152005MPC-R7 is not designed for use in humid or moist environments. It's essential to ensure that the component is used in a dry, clean environment to prevent moisture-related issues, such as corrosion or electrical failures. If the component is exposed to moisture, ensure that it's properly dried and cleaned before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGJ2D152005MPC-R7 Overview

Use the download button to access the MGJ2D152005MPC-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ2D, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
