MGJ6D1218025MC-R13 - Murata Electronics

Description: 5.7kVDC Isolated 6W Gate Drive SM DC-DC Converter

Download MGJ6D1218025MC-R13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

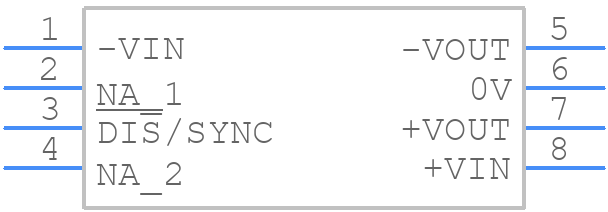

MGJ6D1218025MC-R13 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

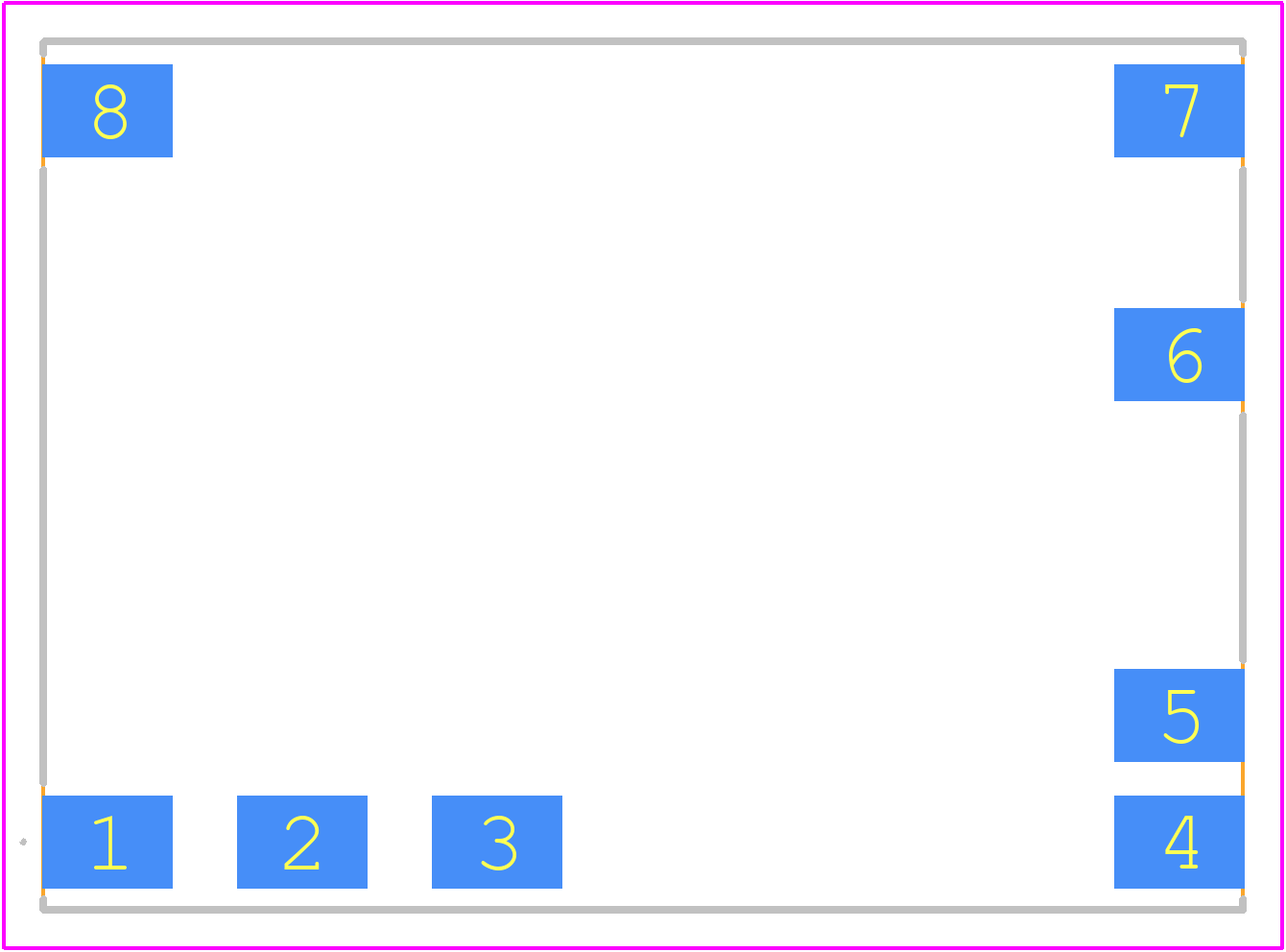

MGJ6D1218025MC-R13 - Murata Electronics PCB footprint - Other - Other - 31.24x22.61x14.19mm
click to zoom
3D Models
MGJ6D1218025MC-R13 - Murata Electronics - 3D model - Other - 31.24x22.61x14.19mm
click to zoom

MGJ6D1218025MC-R13 Details

  • Manufacturer Part Number:

    MGJ6D1218025MC-R13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    1

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    245

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGJ6D1218025MC-R13 Overview

Use the download button to access the MGJ6D1218025MC-R13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ6D, or try a keyword search, such as Power Supply Modules
