MGJ6D122005DC - Murata Electronics

Description: Isolated Module DC DC Converter 2 Output 20V -5V 240mA, 240mA 9V - 18V Input

Download MGJ6D122005DC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

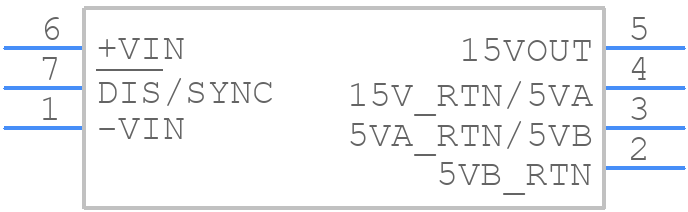

MGJ6D122005DC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

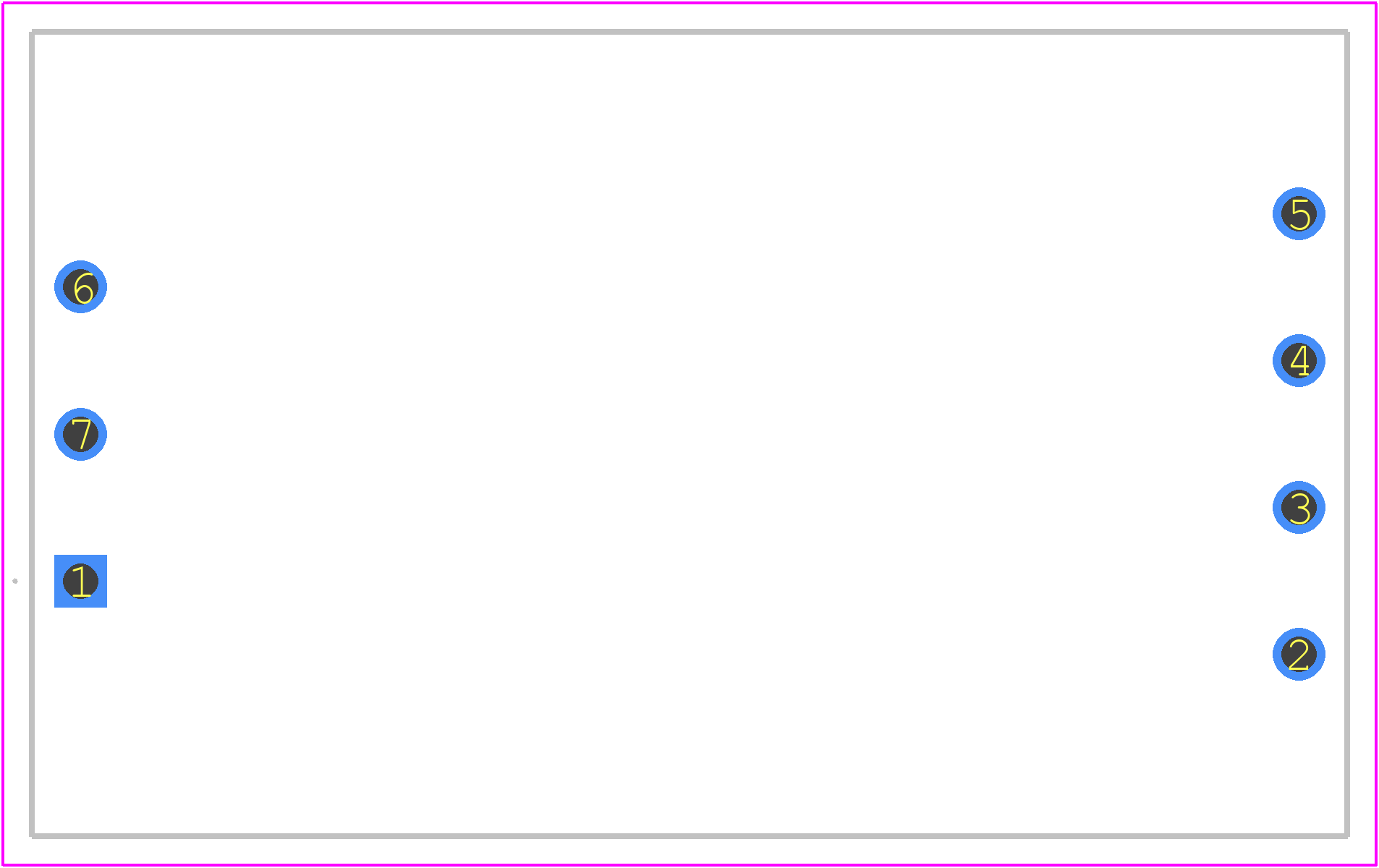

MGJ6D122005DC - Murata Electronics PCB footprint - Other - Other - DIP-7
click to zoom
3D Models
MGJ6D122005DC - Murata Electronics - 3D model - Other - DIP-7
click to zoom

MGJ6D122005DC Details

  • Manufacturer Part Number:

    MGJ6D122005DC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    -5V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    AAMI, ANSI, C-UL-US, IEC, UL

  • Efficiency (Main Output):

    80%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-P7

  • Length:

    45.47 mm

  • Line Regulation-Max:

    2%

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.24 A

  • Output Voltage-Max:

    20.6 V

  • Output Voltage-Min:

    19.4 V

  • Output Voltage-Nom:

    20 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7,1.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER LOAD, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Screening Level:

    ES 60601-1, Two MOPP

  • Seated Height-Max:

    10.63 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    4.8 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.015 s

  • Width:

    27.81 mm

MGJ6D122005DC Frequently Asked Questions (FAQs)

  • The recommended land pattern for MGJ6D122005DC is a rectangular pad with a size of 3.3mm x 2.5mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.2mm.
  • To ensure reliable operation, it's essential to provide a thermal path from the component to a heat sink or a metal core PCB. A thermal via or a thermal pad can be used to dissipate heat. The recommended thermal resistance is ≤10°C/W.
  • The MGJ6D122005DC can operate safely within a temperature range of -40°C to +125°C. However, the component's performance may degrade above 85°C, and it's recommended to derate the power handling accordingly.
  • To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as soldering or using a mechanical clamp. Additionally, the PCB should be designed to minimize flexure and stress on the component.
  • The MGJ6D122005DC has an ESD rating of 2kV human body model (HBM) and 150V machine model (MM). To ensure ESD protection, it's recommended to handle the component in an ESD-controlled environment and use ESD protection devices, such as TVS diodes, in the circuit design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGJ6D122005DC Overview

Use the download button to access the MGJ6D122005DC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ6D, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
