MGJ6D241505SC - Murata Electronics

Description: DC/DC Converter Isolated +15/-5V 6W

Download MGJ6D241505SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

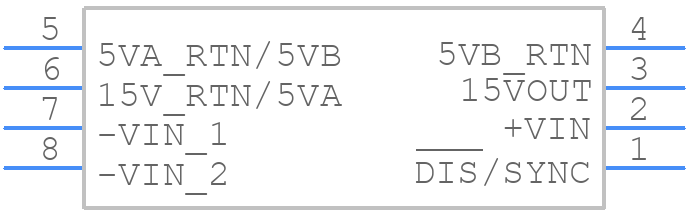

MGJ6D241505SC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

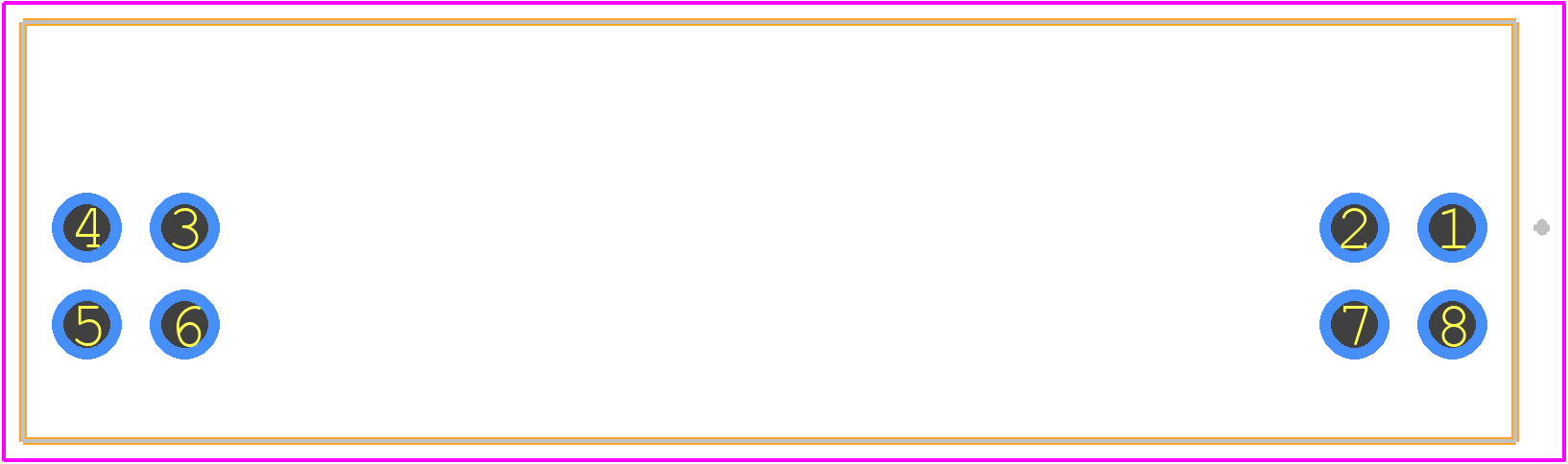

MGJ6D241505SC - Murata Electronics PCB footprint - Other - Other - MGJ6D241505SC-2
click to zoom
3D Models
MGJ6D241505SC - Murata Electronics - 3D model - Other - MGJ6D241505SC-2
click to zoom

MGJ6D241505SC Details

  • Manufacturer Part Number:

    MGJ6D241505SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    -5V ADDITIONAL OUPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    AAMI, ANSI, C-UL-US, EN, ES, IEC, UL

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSIP-T8

  • Length:

    38.89 mm

  • Line Regulation-Max:

    2%

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    15.45 V

  • Output Voltage-Min:

    14.55 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP8,.2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER LOAD, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Screening Level:

    2MOPP

  • Seated Height-Max:

    28.62 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    4.5 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.015 s

  • Width:

    10.9 mm

MGJ6D241505SC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the MGJ6D241505SC can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal mounting and soldering.
  • To prevent damage, handle the MGJ6D241505SC by the edges, avoid touching the component body, and use an anti-static wrist strap or mat to prevent electrostatic discharge. Also, avoid bending or flexing the component during assembly.
  • The maximum allowable voltage derating for the MGJ6D241505SC is typically 80% of the rated voltage, but this may vary depending on the specific application and environmental conditions. Consult the datasheet and application notes for more information.
  • The MGJ6D241505SC is rated for operation up to 125°C, but the component's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for more information on temperature derating and thermal management.
  • To troubleshoot issues with the MGJ6D241505SC, check the component's soldering and mounting, ensure proper voltage and current ratings, and verify the component's specifications and application notes. Consult Murata's technical support or a qualified engineer for further assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGJ6D241505SC Overview

Use the download button to access the MGJ6D241505SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ6D, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
