The recommended land pattern for MGJ6D241505WMC-R7 is available in the Murata Land Pattern Recommendation document, which can be found on the Murata website. The document provides detailed information on the recommended pad layout, size, and spacing for optimal performance and reliability.
To handle the MGJ6D241505WMC-R7's sensitivity to moisture, it's essential to follow proper storage and handling procedures. Store the components in a dry, cool place, and avoid exposing them to high humidity or temperature fluctuations. During assembly, ensure that the components are not exposed to moisture, and use a nitrogen-filled environment if possible. Additionally, consider using a moisture-sensitive device (MSD) label and following the IPC/JEDEC J-STD-033 standard for handling and storage.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. For optimal performance, it's recommended to operate the MGJ6D241505WMC-R7 within a temperature range of -20°C to +100°C. However, if your application requires operation outside this range, consult with Murata's technical support team for guidance.
The MGJ6D241505WMC-R7 is designed to withstand moderate vibration levels, but it's not suitable for high-vibration environments. If your application involves high vibration, consider using a component with a higher vibration rating or implementing additional mechanical support and damping measures to minimize the impact of vibration on the component.
To ensure the MGJ6D241505WMC-R7's EMC in your design, follow proper PCB layout and design guidelines, such as keeping the component away from high-frequency signals and using adequate shielding and grounding. Additionally, consider using a shielded enclosure and implementing EMI filtering measures to minimize electromagnetic interference. Consult with Murata's technical support team or an EMC expert for guidance on specific design requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGJ6D241505WMC-R7 Overview

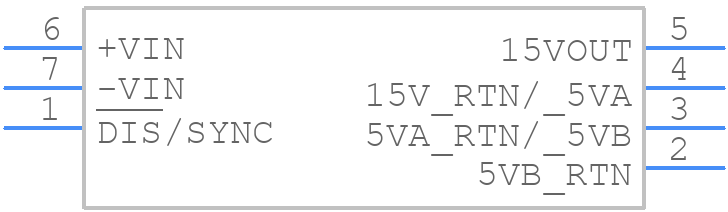

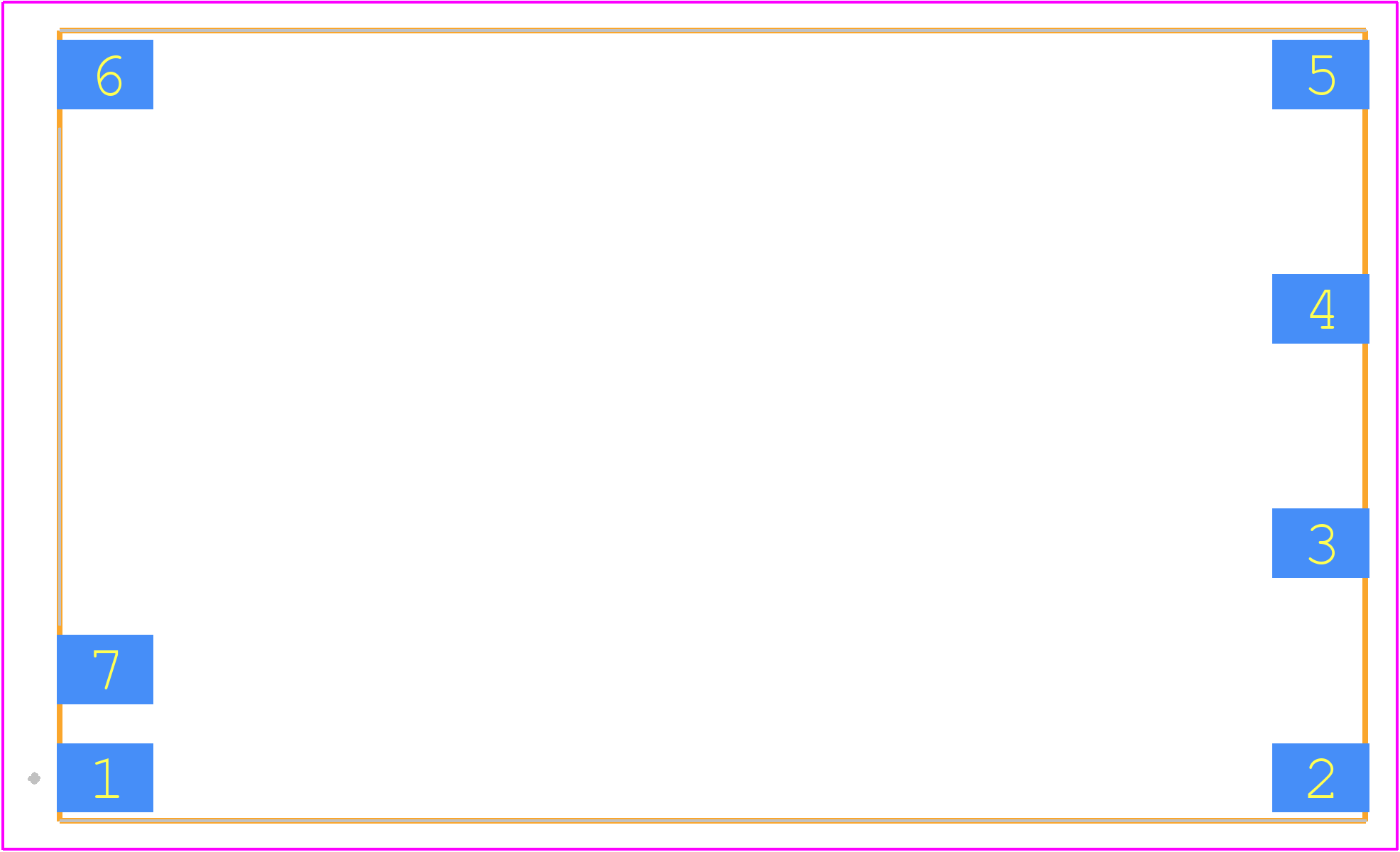

Use the download button to access the MGJ6D241505WMC-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ6D,
or try a keyword search, such as Power Supply Modules
About Murata Electronics
Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions.
Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
