MGJ6D241510SC - Murata Electronics

Description: Isolated DC/DC Converters 6W 24Vin 15/10Vout 240mA SIP

Download MGJ6D241510SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

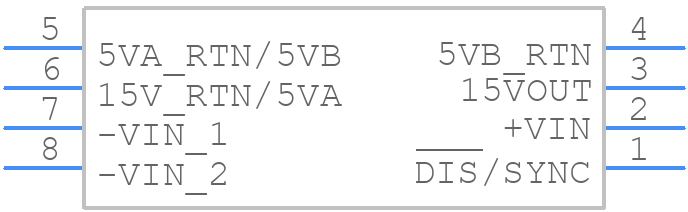

MGJ6D241510SC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

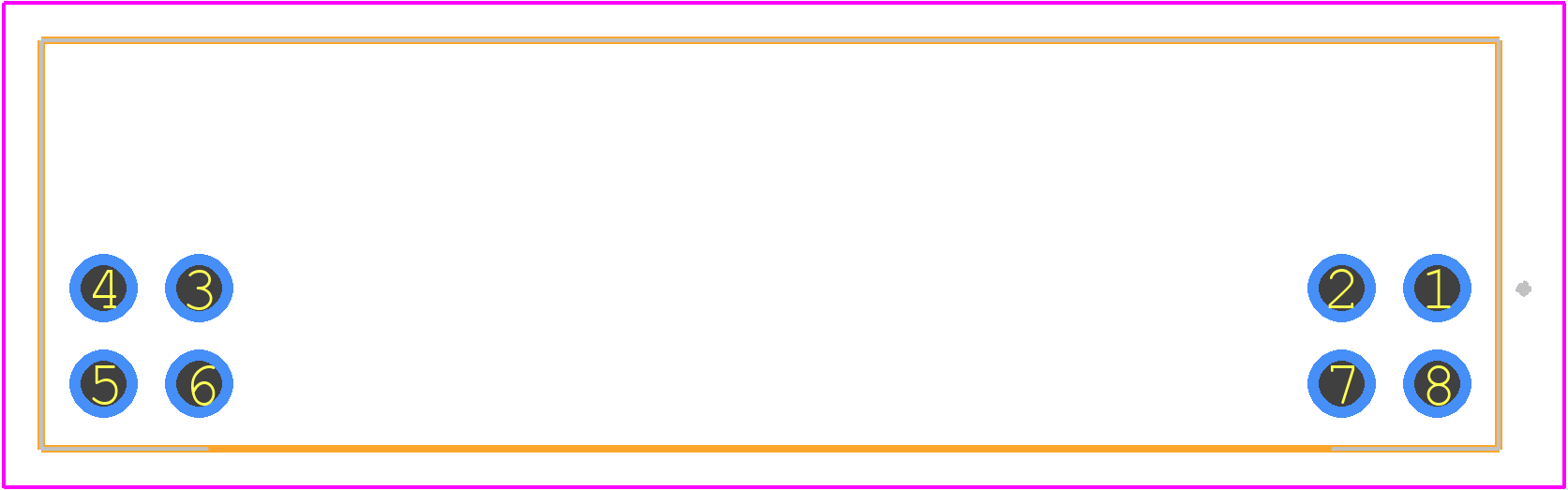

MGJ6D241510SC - Murata Electronics PCB footprint - Other - Other - MGJ6D241510SC-1
click to zoom
3D Models
MGJ6D241510SC - Murata Electronics - 3D model - Other - MGJ6D241510SC-1
click to zoom

MGJ6D241510SC Details

  • Manufacturer Part Number:

    MGJ6D241510SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    -10V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    AAMI, ANSI, C-UL-US, EN, ES, IEC, UL

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSIP-T8

  • Length:

    38.89 mm

  • Line Regulation-Max:

    2%

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.24 A

  • Output Voltage-Max:

    15.45 V

  • Output Voltage-Min:

    14.55 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP8,.2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER LOAD, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Screening Level:

    2MOPP

  • Seated Height-Max:

    28.62 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3.6 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.015 s

  • Width:

    10.9 mm

MGJ6D241510SC Frequently Asked Questions (FAQs)

  • The recommended land pattern for MGJ6D241510SC is a rectangular pad with a size of 3.2mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
  • The MGJ6D241510SC has a thermal resistance of 10°C/W. To ensure reliable operation, it's recommended to provide a thermal pad on the PCB, and consider using thermal vias to dissipate heat. The component should be placed in a way that allows for good airflow and heat dissipation.
  • The MGJ6D241510SC has an operating temperature range of -40°C to +125°C. However, it's recommended to derate the component's power handling capability at higher temperatures to ensure reliable operation.
  • To ensure the reliability of MGJ6D241510SC in high-vibration environments, it's recommended to use a secure mounting method, such as using a screw or adhesive, and to follow the recommended PCB layout and component placement guidelines. Additionally, consider using a vibration-resistant coating or conformal coating to protect the component.
  • The MGJ6D241510SC should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the components in their original packaging or in a sealed bag to prevent moisture absorption. When handling the components, use anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MGJ6D241510SC Overview

Use the download button to access the MGJ6D241510SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ6D, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
