The recommended land pattern for MGJ6D242005WMC-R7 is available in the Murata Land Pattern Recommendation document, which can be found on the Murata website. The document provides detailed information on the recommended pad layout, size, and spacing for optimal performance and reliability.
To handle the MGJ6D242005WMC-R7's sensitivity to moisture, it's essential to follow proper storage and handling procedures. Store the components in a dry, cool place, and avoid exposing them to high humidity or temperature fluctuations. During assembly, ensure that the components are not exposed to moisture, and use a dry, clean environment. Additionally, consider using a moisture-sensitive device (MSD) handling procedure, such as baking the components before assembly, to minimize the risk of moisture-related damage.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. For optimal performance, it's recommended to operate the MGJ6D242005WMC-R7 within a temperature range of -20°C to +100°C. However, if your application requires operation outside this range, consult with Murata's technical support team for guidance on potential derating and performance considerations.
While the MGJ6D242005WMC-R7 is designed to be robust, it's essential to consider the potential effects of vibration on the component's performance and reliability. Murata recommends following the guidelines outlined in the IEC 60068-2-6 standard for vibration testing. If your application involves high-vibration environments, consult with Murata's technical support team to discuss potential mitigation strategies, such as component mounting and PCB design considerations.
To ensure the MGJ6D242005WMC-R7's EMC in your design, follow proper PCB layout and design guidelines, such as keeping the component away from noise sources, using proper grounding and shielding, and minimizing signal loop areas. Additionally, consider implementing EMC filters or common-mode chokes to reduce electromagnetic interference (EMI). Consult with Murata's technical support team for guidance on specific design considerations and recommendations for your application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MGJ6D242005WMC-R7 Overview

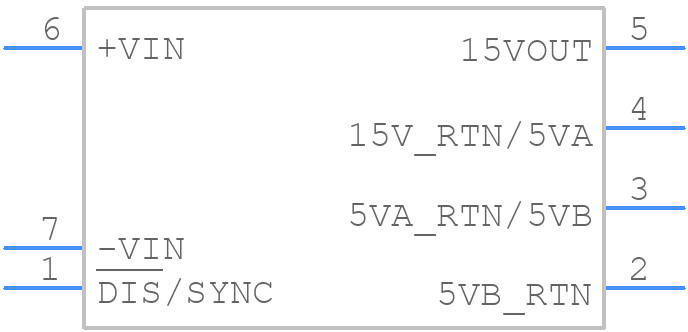

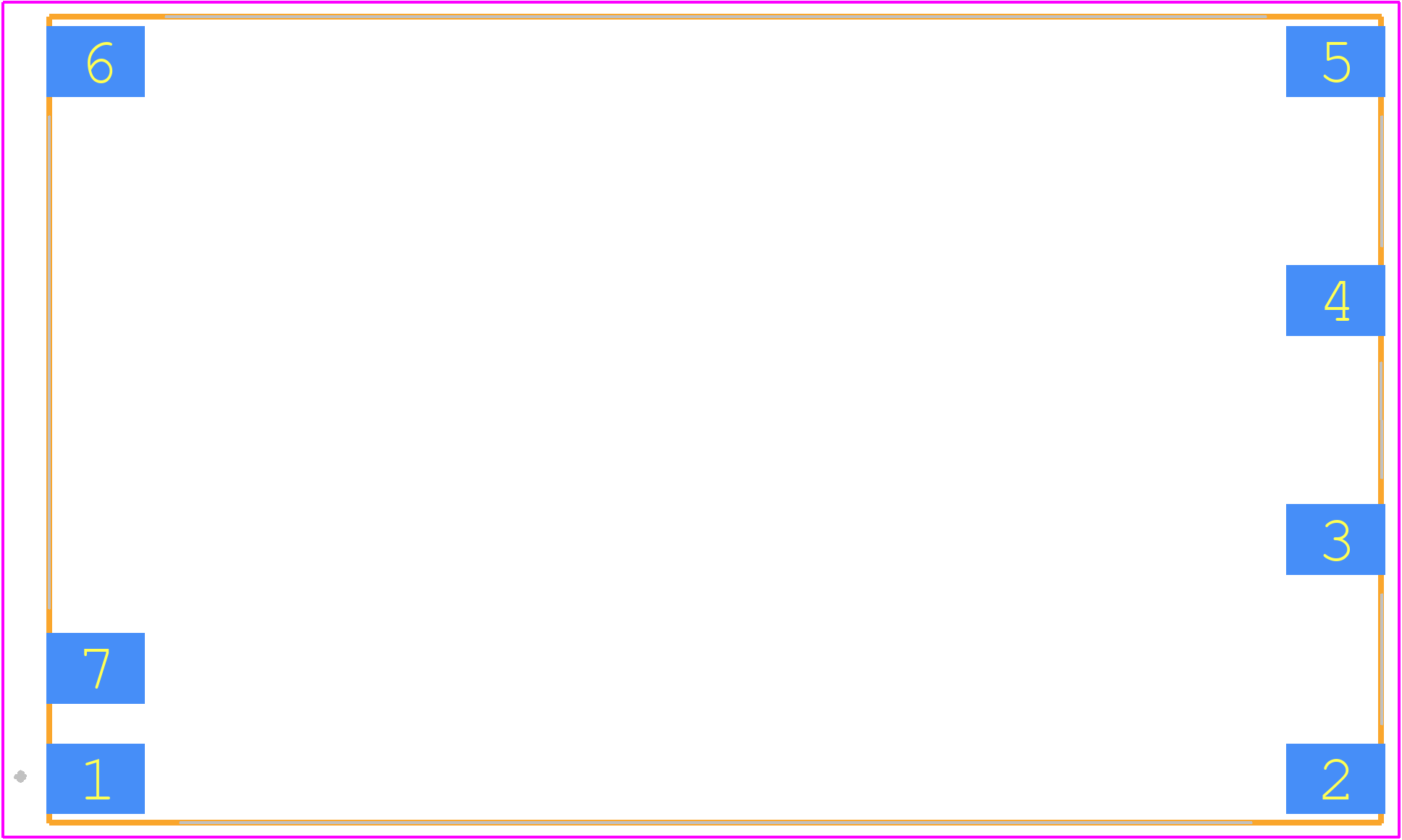

Use the download button to access the MGJ6D242005WMC-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MGJ6D,
or try a keyword search, such as Power Supply Modules
About Murata Electronics
Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions.
Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
