MGJ6D24H24MC-R7 - Murata Electronics

MGJ6D24H24MC-R7 Frequently Asked Questions (FAQs)

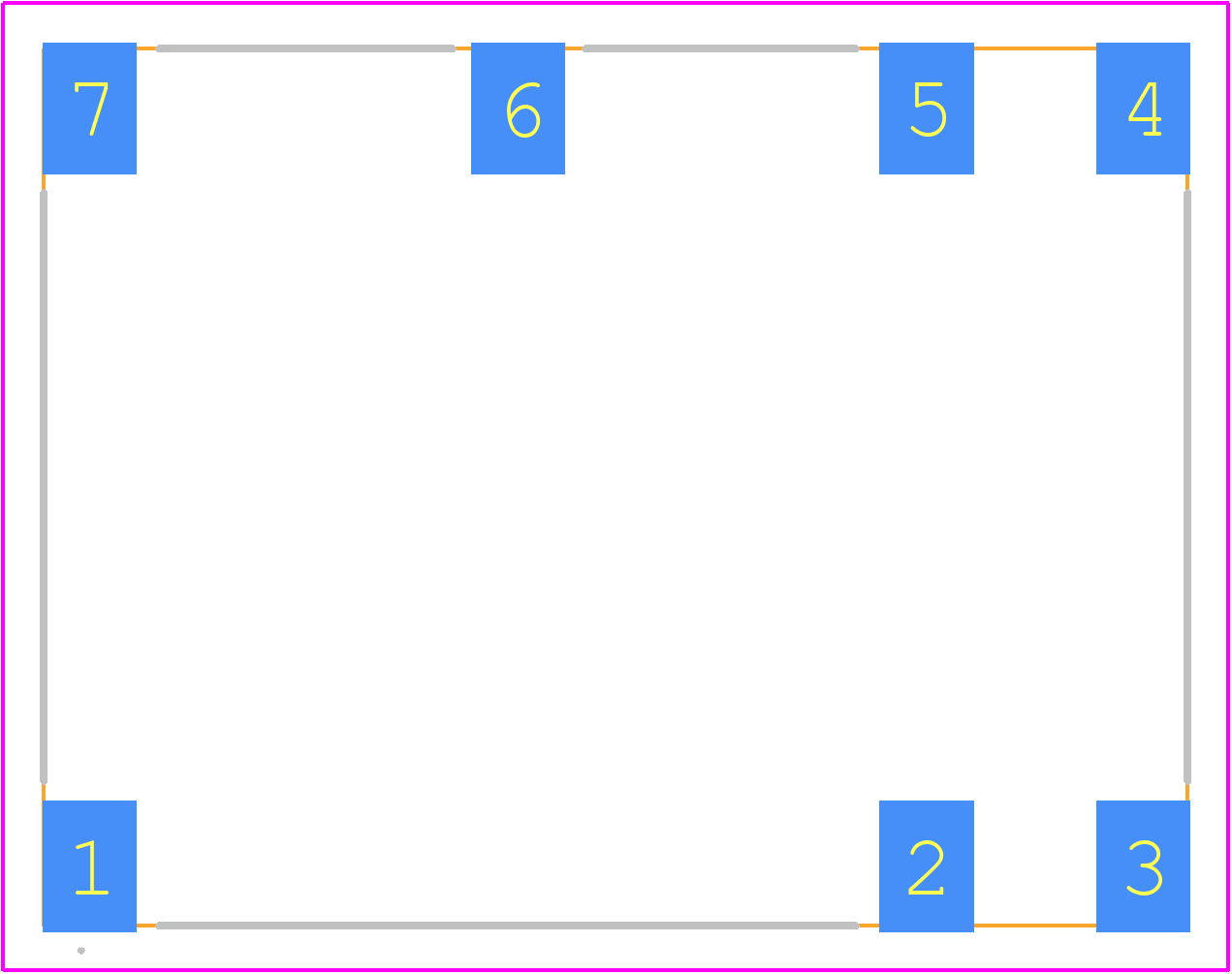

• What is the recommended land pattern for the MGJ6D24H24MC-R7?
  The recommended land pattern for the MGJ6D24H24MC-R7 can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal mounting and soldering.
• How do I handle the MGJ6D24H24MC-R7 in terms of moisture sensitivity?
  The MGJ6D24H24MC-R7 is a moisture-sensitive device and should be stored in a dry environment. If the device is exposed to moisture, it should be baked in a dry oven at 125°C for 24 hours to remove any moisture before mounting.
• What is the maximum reflow temperature for the MGJ6D24H24MC-R7?
  The maximum reflow temperature for the MGJ6D24H24MC-R7 is 260°C, and the device should not be exposed to temperatures above this limit to prevent damage or degradation.
• Can the MGJ6D24H24MC-R7 be used in high-vibration applications?
  Yes, the MGJ6D24H24MC-R7 is designed to withstand high-vibration environments and can be used in applications where vibration is a concern. However, it's recommended to perform additional testing and validation to ensure the device meets the specific requirements of the application.
• What is the recommended soldering process for the MGJ6D24H24MC-R7?
  The recommended soldering process for the MGJ6D24H24MC-R7 involves using a soldering iron with a temperature of 350°C to 370°C, and a soldering time of 2-3 seconds. It's also recommended to use a solder with a melting point of 217°C to 221°C.
