MGS100512 - Cosel

MGS100512 Details

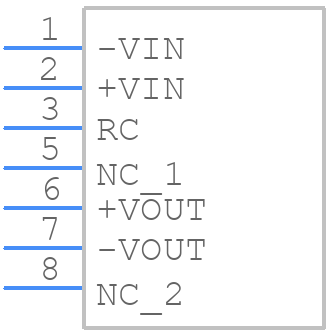

• Manufacturer Part Number:

  MGS100512

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-7

• ECCN Code:

  EAR99

• Date Of Intro:

  2016-11-03

• Manufacturer:

  Cosel USA Inc

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, C-UL, EN

• Efficiency (Main Output):

  88%

• Input Voltage-Max:

  9 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-XSMA-T7

• Length:

  22 mm

• Line Regulation-Max:

  0.00576%

• Load Regulation-Max:

  0.4%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.9 A

• Output Voltage-Max:

  12.36 V

• Output Voltage-Min:

  11.64 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  SMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Protections:

  OVER CURRENT

• Ripple Voltage (Main Out):

  0.1414 Vrms

• Seated Height-Max:

  12.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  15

• Total Power Output-Max:

  10.8 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.03 s

• Width:

  9.5 mm
